742792515 Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | 742792515 | |
| Manufacturer | Wurth Electronics | |
| ChipWorker Part# | CW3751612 | |
| Category | Ferrite | |
| Documentation | Datasheet | |
| Mounting Style | Surface Mount | |
| Case/Package (SI) | 4532 | |
| Case/Package | 1812 | |
| Current Rating | 3 A | |
| Capacitance Tolerance | ±25 % | |
| Resistance | 50.0 mΩ | |
| Test Frequency | 100 MHz | |
| DC Resistance (DCR) | ≤50 mΩ | |
| Current Rating (Max) | 3 A | |
| Current Rating (DC) | 3 A | |
| Operating Temperature (Max) | 125 ℃ | |
| Operating Temperature (Min) | -55 ℃ | |
| Resistance (DC Max) | 50 mΩ | |
| expand all | ||
| Size-Length | 4.5 mm | |
| Size-Width | 3.2 mm | |
| Size-Height | 1.5 mm | |
| Operating Temperature | -55℃ ~ 125℃ | |
| Product Lifecycle Status | Active | |
| Packaging | Tape & Reel (TR) | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| REACH SVHC Compliance | No SVHC |
Similar & Replacement Parts
Similar products
Product Description

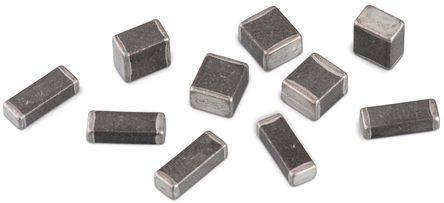

- The WE-CBF series from Wurth Elektronik are surface mount EMI suppression ferrite beads. These ferrite beads offer excellent anti EMI properties and low DC resistance. WE-CBF ferrite beads can be soldered directly on printed circuit board.
- EIA 0402, 0603, 0805, 1206, 1210, 1806, 1812 chip sizes available
- Reliable Ni-Sn electrodes
- Impedance at 100MHz ranges from 5ohm to 27Kohm
- Rated current rating from 50mA to 6A
- DC Resistance ranges from 8mohm to 1.5ohm
- Operating temperature range -55°C to 125°C
- Suitable for reflow soldering process
