7447709101 - Wurth Electronics

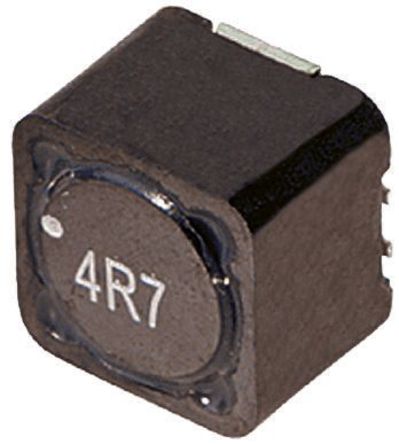

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

7447709101
Manufacturer

Wurth Electronics
ChipWorker Part#

CW13345883
Category

Inductor
Package

1210
Description

Power Choke Shielded Wirewound 100uH 20% 1kHz Ferrite 2.5A 110mOhm DCR T/R
Documentation

Datasheet

7447709101 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

7447709101 Specifications

Attribute	Attribute Value

Part Number	7447709101
Manufacturer	Wurth Electronics
ChipWorker Part#	CW13345883
Category	Inductor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	1210
Current Rating	2.5 A
Capacitance Tolerance	±20 %
Inductance	100 µH
Self Resonant Frequency	4.3 MHz
Part Family	WE-PD
Resistance	100 mΩ
Resonant Frequency	6.00 MHz
Inductance Tolerance	±20 %
Test Frequency	1 kHz
DC Resistance (DCR)	≤110 mΩ
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.11 Ω
	expand all
Size-Length	12 mm
Size-Width	12 mm
Size-Height	10 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16

Product Description

The Wurth Elektronik WE-PD series are magnetic shielded power inductors. The inductance value ranges from 0.47µH to 1500µH.
EIA 7332, 7345, 1030, 1050, 1245, 1260, 1280, 1210, 6033, 6050 case sizes available
