744771220 - Wurth Electronics

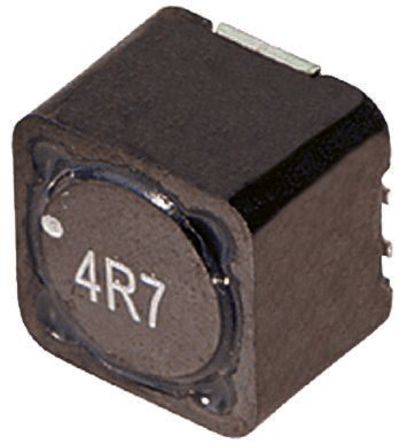

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

744771220
Manufacturer

Wurth Electronics
ChipWorker Part#

CW67063736
Category

Inductor Surface Mount
Package

12mm x 12mm x 6mm
Description

220uH ±20% 960mA
Documentation

Datasheet

744771220 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

744771220 Specifications

Attribute	Attribute Value

Part Number	744771220
Manufacturer	Wurth Electronics
ChipWorker Part#	CW67063736
Category	Inductor Surface Mount
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	12mm x 12mm x 6mm
Current Rating	960 mA
Capacitance Tolerance	±20 %
Inductance	220 µH
Self Resonant Frequency	3.8 MHz
Part Family	WE-PD
Resistance	290 mΩ
Resonant Frequency	3.80 MHz
Inductance Tolerance	±20 %
Test Frequency	1 kHz
DC Resistance (DCR)	≤400 mΩ
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.4 Ω
	expand all
Size-Length	12 mm
Size-Height	6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16

Product Description

The Wurth Elektronik WE-PD series are magnetic shielded power inductors. The inductance value ranges from 0.47µH to 1500µH.
EIA 7332, 7345, 1030, 1050, 1245, 1260, 1280, 1210, 6033, 6050 case sizes available
Magnetic shielding results in low leakage field
High storage capacity
Low self losses
Highest possible current loading
Operating temperature range -40°C to 125°C
Suitable for reflow soldering process
Available in metal and plastic base
