MD1803DFX - ST Microelectronics

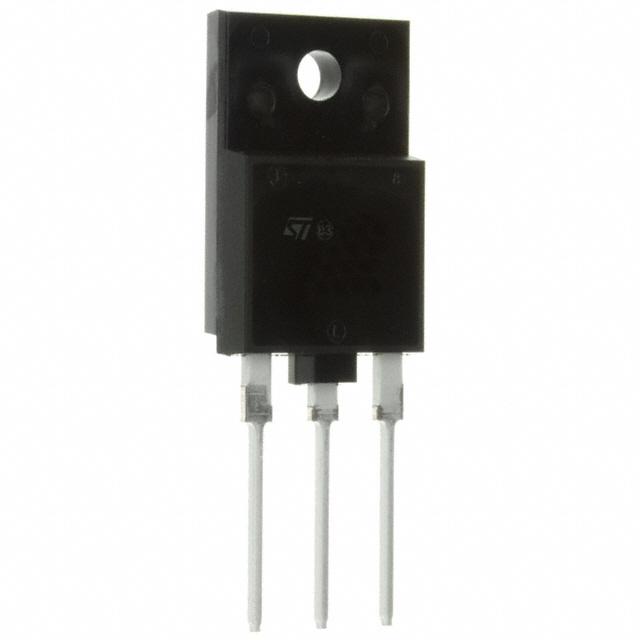

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MD1803DFX
Manufacturer

ST Microelectronics
ChipWorker Part#

CW93281919
Category

BJT Transistor, BJT
Package

ISOWATT218FX-3
Description

ISOWATT218FX NPN 700V 10A
Documentation

Datasheet

MD1803DFX Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MD1803DFX Specifications

Attribute	Attribute Value

Part Number	MD1803DFX
Manufacturer	ST Microelectronics
ChipWorker Part#	CW93281919
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	ISOWATT218FX-3
Polarity	NPN
Power Dissipation	57000 mW
Breakdown Voltage (Collector to Emitter)	700 V
Continuous Collector Current	10A
Input Power (Max)	57 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	57000 mW
	expand all
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Ensure the proper transistor is used within your digital processing unit by using STMicroelectronics" NPN MD1803DFX digital transistor. This transistor"s maximum base emitter saturation voltage is 1.2@1.25A@5A V. This product"s maximum continuous DC collector current is 10000 mA, while its minimum DC current gain is 5.5@5A@5 V. It has a maximum collector emitter saturation voltage of 2@1.25A@5A V. It has a maximum collector emitter voltage of 700 V. Its maximum power dissipation is 57000 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This transistor has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration.
