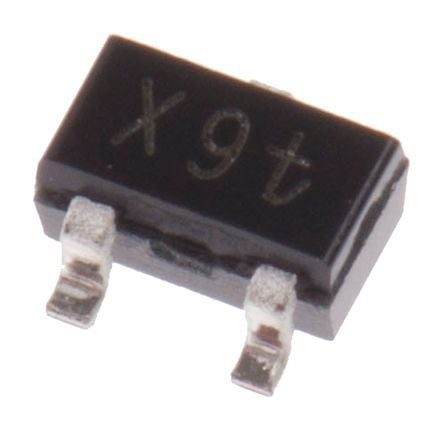

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

94 points

Part No

BSS138W
Manufacturer

ON Semiconductor
ChipWorker Part#

CW15367275
Category

MOSFET, MOSFET Transistor
Package

SOT-323
Description

Trans MOSFET N-CH 50V 0.21A 3Pin SOT-323 T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

13052 pcs In Stock
Estimated Price

$ 0.05

Buy BSS138W
