MAC8SMG ,TRIAC Diode, TRIAC - ON Semiconductor

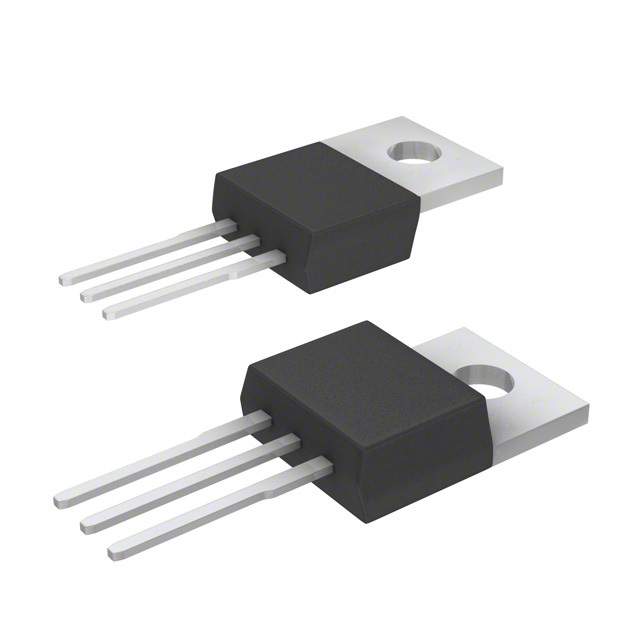

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

81 points

Part No

MAC8SMG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW81004800
Category

TRIAC Diode, TRIAC
Package

TO-220-3
Description

Thyristor TRIAC 600V 70A 3Pin(3+Tab) TO-220AB Rail
Documentation

Datasheet
Ships from

Moscow
Наличие

155894 pcs In Stock
Estimated Price

$ 0.4

Buy MAC8SMG

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

MAC8SMG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

MAC8SMG Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	MAC8SMG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW81004800
Category	TRIAC Diode, TRIAC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Holding Current	10 mA
Holding Current (Max)	10 mA
Operating Temperature (Max)	110 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	-40℃ ~ 110℃
	expand all
Size-Height	9.28 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

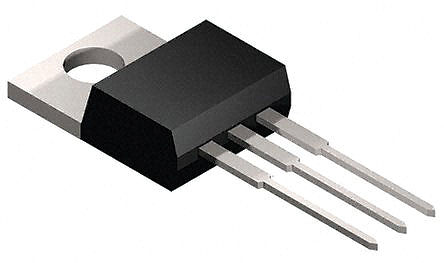

Similar products

Product Description

Sensitive Gate Triacs
Silicon Bidirectional Thyristors
Designed for industrial and consumer applications for full wave control of ac loads such as appliance controls, heater controls, motor controls, and other power switching applications.
Features
• Sensitive Gate Allows Triggering by Microcontrollers and other Logic Circuits
• Uniform Gate Trigger Currents in Three Quadrants; Q1, Q2, and Q3
• High Immunity to dv/dt − 25 V/μs Minimum at 110°C
• High Commutating di/dt − 8.0 A/ms Minimum at 110°C
• Maximum Values of IGT, VGT and IH Specified for Ease of Design
• On-State Current Rating of 8 Amperes RMS at 70°C
• High Surge Current Capability − 70 Amperes
• Blocking Voltage to 800 Volts
• Rugged, Economical TO−220AB Package
• Pb−Free Packages are Available
