ADR441BRZ ,Voltage Reference - ADI

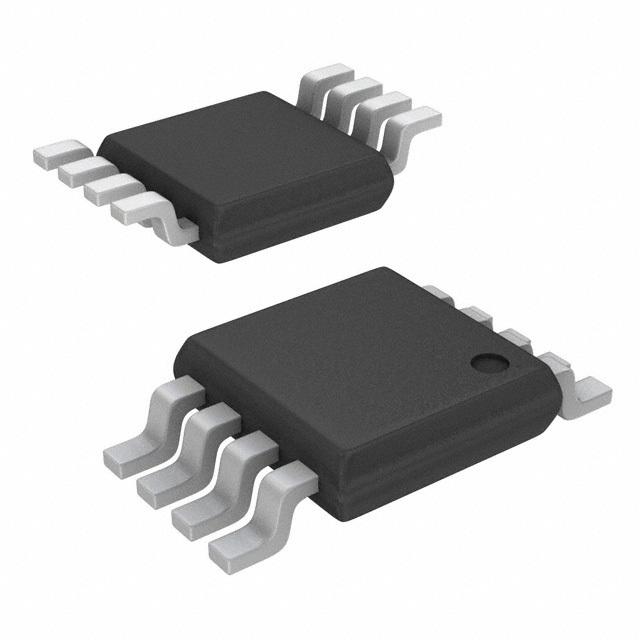

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

231 points

Part No

ADR441BRZ
Manufacturer

ADI
ChipWorker Part#

CW96248
Category

Voltage Reference
Package

SOIC-8
Description

* Ultralow noise (0.1Hz to 10Hz) * ADR440: 1µV p-p * ADR441: 1.2μV p-p * ADR443: 1.4μV p-p * ADR444: 1.8µV p-p * ADR445: 2.25μV p-p * Superb temperature coefficient * A grade: 10ppm/°C * B grade: 3ppm/℃ * Low dropout operation: 500mV * Input range: (VOUT + 500mV) to 18V * High output source and sink current * +10mA and -5mA, respectively * Wide temperature range:-40℃ to +125℃
Documentation

Datasheet
Ships from

Moscow
Наличие

801092 pcs In Stock
Estimated Price

$ 0.01

Buy ADR441BRZ

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ADR441BRZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ADR441BRZ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ADR441BRZ
Manufacturer	ADI
ChipWorker Part#	CW96248
Category	Voltage Reference
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Current Rating	3.75 mA
Capacitance Tolerance	±0.04 %
Input Voltage (DC)	3.00V ~ 18.0V
Output Voltage	2.5 V
Output Current	10 mA
Supply Current	3.75 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Input Voltage (Max)	20 V
Output Voltage (Max)	2.5 V
Output Voltage (Min)	2.5 V
Output Current (Max)	10 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	3V ~ 18V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Temperature Coefficient	±3 ppm/℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The ADR441BRZ is a 2.5V LDO XFET Voltage Reference with current sink and source featuring ultralow noise, high accuracy and low temperature drift performance. Using patented temperature drift curvature correction technique and XFET technology, voltage change vs. temperature nonlinearity in the ADR441 is minimized. The XFET reference offer better noise performance than buried Zener reference and XFET references operate off low supply voltage headroom (0.5V). This combination of features makes the ADR441 ideally suited for precision signal conversion applications in high-end data acquisition systems, optical networks and medical applications. The ADR441 XFET reference is the only low noise solution for 5V systems. This reference has the capability to source up to 10mA of output current and sink up to -5mA. It also comes with a trim terminal to adjust the output voltage over a 0.5% range without compromising performance.
Ultralow noise (1.2µVp-p (0.1 to 10Hz))
Superb temperature coefficient
Low dropout operation (500mV)
Input range (VOUT + 500mV) to 18V
High output source and sink current (+10 and -5mA)
ESD sensitive device, take proper precaution while handling the device.
