74HC151D - NXP

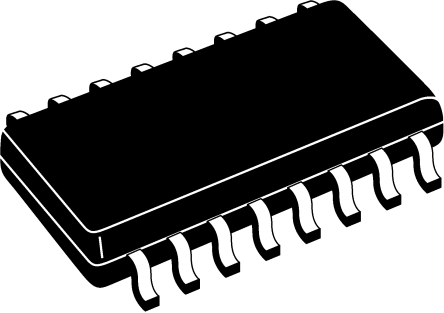

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

74HC151D
Manufacturer

NXP
ChipWorker Part#

CW85242631
Category

Logic Controller, Logic IC
Package

SOIC
Description

NXP 74HC151D Multiplexer, HC Family, 1 Gate, 8Input, 2 Output, 5.2mA, 2V to 6V, SOIC-16
Documentation

Datasheet

74HC151D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

74HC151D Specifications

Attribute	Attribute Value

Part Number	74HC151D
Manufacturer	NXP
ChipWorker Part#	CW85242631
Category	Logic Controller, Logic IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC
Supply Voltage (DC)	2.00V (min)
Number of Outputs	2 Output
Number of Circuits	1 Circuit
Number of Positions	16 Position
Polarity	Non-Inverting, Inverting
Power Dissipation	0.5 W
Number of Gates	1 Gate
Number of Inputs	8 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.45 mm
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The 74HC151D is a 8-bit Multiplexer with eight binary inputs (I0 to I7), three select inputs (S0 to S2) and an enable input (E\\). One of the eight binary inputs is selected by the select inputs and routed to the complementary outputs (Y and Y\\). A high on E\ forces the output Y low and output Y\ high. Inputs also include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
