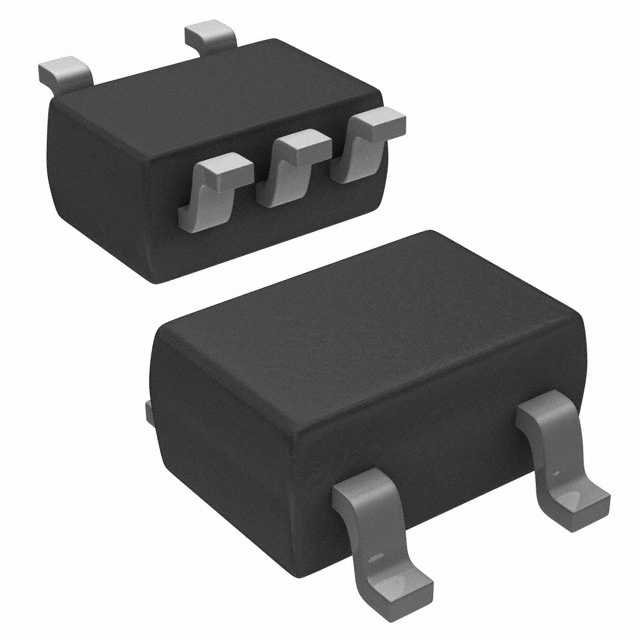

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

74LVC1G08GW
Manufacturer

NXP
ChipWorker Part#

CW44830006
Category

Logic Control, Logic Gate IC
Package

SOT-353
Description

AND Gate 1Element 2IN CMOS 5Pin TSSOP T/R
Documentation

Datasheet

74LVC1G08GW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

74LVC1G08GW Specifications

Attribute	Attribute Value

Part Number	74LVC1G08GW
Manufacturer	NXP
ChipWorker Part#	CW44830006
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-353
Supply Voltage (DC)	1.65V (min)
Number of Outputs	1 Output
Output Current	32 mA
Number of Positions	5 Position
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	expand all
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR

Product Description

The 74LVC1G08GW is a single two input AND gate in 5 pin TSSOP package. Inputs can be driven either from 3.3V or 5V devices. This feature allows the use of this device as translators in mixed 3.3V and 5V applications. Schmitt trigger action at all input makes circuit tolerant of slower input rise and fall time. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output and prevents damaging due to backflow current through the device during powered down mode.
Wide supply voltage range from 1.65V to 5.5V
High noise immunity
Complies with JESD8-7, JESD8-5, JESD8-B/JESD36 JEDEC standards
±24mA output drive at VCC = 3V
CMOS low power consumption
Latch up performance is less than or equal to 250mA
Direct interface with TTL levels
Input voltages up to 5V
Features ESD protection
Ambient temperature range from -40°C to 125°C
