A000005 - Arduino

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

A000005
Manufacturer

Arduino
ChipWorker Part#

CW4078469
Category

Microprocessor Primary Platform
Description

ARDUINO.ORG A000005 ARDUINO NANO, EVALUATION BOARD
Documentation

Datasheet

A000005 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

A000005 Specifications

Attribute	Attribute Value

Part Number	A000005
Manufacturer	Arduino
ChipWorker Part#	CW4078469
Category	Microprocessor Primary Platform
Documentation	Datasheet
Number of Bits	8 Bit
Core Architecture	AVR
	expand all
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

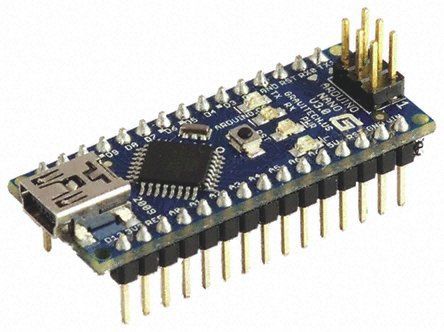

A000005 is an Arduino Nanoboard which is small, breadboard-friendly board based on the ATmega328 (Arduino Nano 3.0) or ATmega168 (Arduino Nano 2.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one. The Nano was designed and is being produced by Gravitech.
Microcontroller Atmel ATmega168
Operating voltage is 5V
Maximum supply voltage 6 to 20V
Digital I/O pins 14 (of which 6 provide PWM output)
DC current per I/O pin 40 mA
DC current for 3.3V pin 50 mA
Flash memory16KB of which 2KB is used by Boot loader
SRAM 1KB, EEPROM 512bytes
Clock speed 16MHz
USB Connector type Mini B male
