ABL8RPS24100 - Schneider Electric

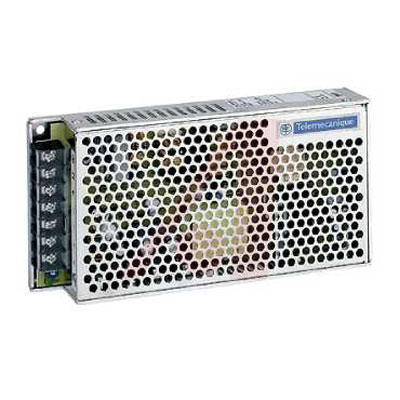

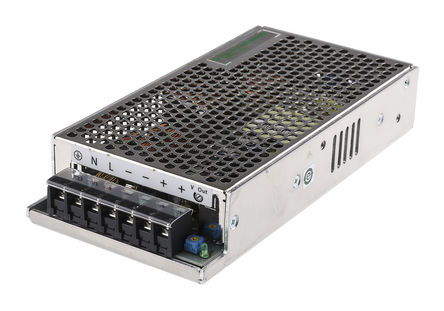

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ABL8RPS24100
Manufacturer

Schneider Electric
ChipWorker Part#

CW43685933
Category

AC to DC Converter, AC/DC Converter
Description

Power Supply; AC-DC; 24V; 10A; 85-132/170-550V In; Enclosed; DIN Rail; 240W; ABL Series
Documentation

Datasheet

ABL8RPS24100 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ABL8RPS24100 Specifications

Attribute	Attribute Value

Part Number	ABL8RPS24100
Manufacturer	Schneider Electric
ChipWorker Part#	CW43685933
Category	AC to DC Converter, AC/DC Converter
Documentation	Datasheet
Power Rating	240 W
Number of Outputs	1 Output
Output Voltage	24 VDC
Output Current	10 A
Output Power	240 W
Input Voltage (AC Max)	500 v
Input Voltage (AC Min)	100 v
Output Current (Max)	10 A
Input Power (Max)	240 W
Input Voltage	100VAC ~ 120VAC, 200VAC ~ 500VAC
	expand all
Size-Length	155 mm
Size-Width	165 mm
Size-Height	143 mm
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The new generation of wide operating range universal power supplies integrates a large number of new functions and offers even more user services with ingenuity by means of function modules.
Designed for simple machines and applications, modular and optimum power supplies are primarily appreciated for their extreme compactness.
Applications:
Industry and building: simple machines, conveying, process, automobile sector, etc.
Tertiary: garage doors, etc.
Modular and optimum power supplies for 100-240 V single-phase networks
* Output voltage: 5, 12, 24, 48 V -7 W-145 W
* Highly compact size
* Wide voltage range
* Fixing by screw or on omega rail
Universal power supplies, for networks single/3-phase 100-500 V
* Output voltage: 24 V and 5 to 15 V by converter modules 48 V/72 W-960 W
* Integrated energy reserve
* 6 product references from 3 A to 40 A
* Fixing on omega rail
* Advanced diagnostics by LED and relay contact
* Integrated anti-harmonics filter
* Function modules to respond to problems of network cuts, 24 VDC circuit overloads and availability

expand all
