ABPMANN030PG2A3 - Honeywell

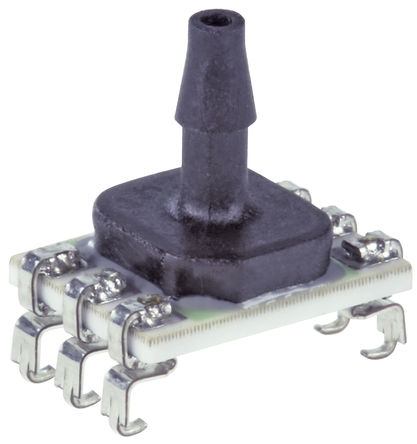

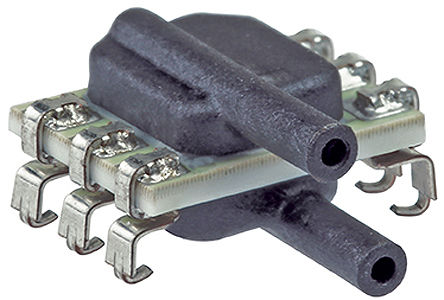

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ABPMANN030PG2A3
Manufacturer

Honeywell
ChipWorker Part#

CW8835300
Category

Pressure Sensor
Package

SMD-6
Description

Pressure Sensor 0psi to 30psi Gage 6Pin SMD Module
Documentation

Datasheet

ABPMANN030PG2A3 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ABPMANN030PG2A3 Specifications

Attribute	Attribute Value

Part Number	ABPMANN030PG2A3
Manufacturer	Honeywell
ChipWorker Part#	CW8835300
Category	Pressure Sensor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SMD-6
Voltage Rating (DC)	3.30 V
Output Voltage	3 VDC
Supply Current	3.1 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.25 %
Voltage Rating	3.3 VDC
Supply Voltage	3.3 V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	expand all
Size-Length	11 mm
Size-Width	8 mm
Size-Height	10.63 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	9026204000
ECCN Code	EAR99

Product Description

The ABPMANN030PG2A3 is a 0 to 30psi 3.3VDC single axial barbed port piezo-resistive silicon Pressure Sensor offering a ratio-metric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. The device is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors using an on-board application specific integrated circuit (ASIC). Calibrated output values for pressure are updated at approximately 1kHz for analog. This sensor measures gage and differential pressures. It is intended for use with non-corrosive, non-ionic gases, such as air and other dry gases.
Dry gases only, no diagnostics
I²C, address 0 x 28 analog output
10 to 90% of Vsupply, 2¹⁴ counts no temperature output, no sleep mode
Proprietary Honeywell technology
±0.25%FSS Industry-leading long-term stability
±1.5%FSS Total error band (TEB)
Industry-leading flexibility
Energy efficient
