XB4BD33 - Schneider Electric

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

XB4BD33
Manufacturer

Schneider Electric
ChipWorker Part#

CW52232536
Category

Pushbutton Switch, Switch Push button
Package

600
Description

Switch Selector N.O. DPST 45° Knob 6A 600VAC 600VDC Screw Clamp 1000000Cycles Panel Mount
Documentation

Datasheet

XB4BD33 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

XB4BD33 Specifications

Attribute	Attribute Value

Part Number	XB4BD33
Manufacturer	Schneider Electric
ChipWorker Part#	CW52232536
Category	Pushbutton Switch, Switch Push button
Documentation	Datasheet
Case/Package	600
Current Rating	1.2 A
Voltage Rating	600 VAC
	expand all
Housing Material	Metal
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

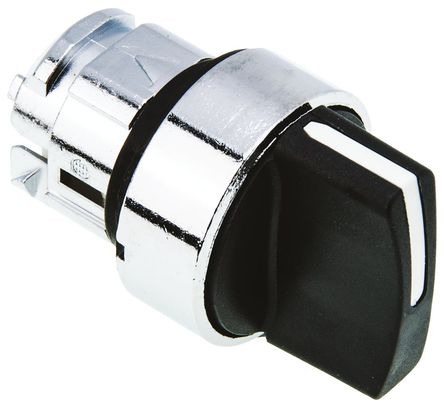

The XB4BD33 is a 3-position black Voltage Selector Switch with screw clamp terminals. It features 2NO contact configuration and slow-break contact operation function. The switch is made of chromium plated metal bezel with silver alloy contacts.
3-position ±45° operator position
22mm mounting diameter
1000000-cycle mechanical durability
6kV conforming to EN/IEC 60947-1 rated impulse withstand voltage
IP69 K conforming to IEC 60529
