AD1871 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD1871
Manufacturer

ADI
ChipWorker Part#

CW430822866
Description

Stereo Audio, 24Bit, 96kHz, Multibit ADC
Documentation

Datasheet

AD1871 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

Product Description

PRODUCT OVERVIEW

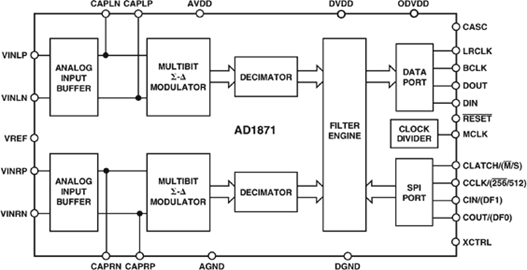

The AD1871 is a stereo audio ADC intended for digital audio applications requiring high performance analog-to-digital conversion. It features two 24-bit conversion channels each with programmable gain amplifier (PGA), multibit sigma-delta modulator, and decimation filters. Each channel provides 105 db of dynamic range, making the AD1871 suitable for applications such as digital audio recorders and mixing consoles.
FEATURES
5.0 V Stereo Audio ADC with 3.3 V Tolerant Digital Interface
Supports 96 kHz Sample Rates
Supports 16-/20-/24-Bit Word Lengths
Multibit Sigma-Delta Modulators with “Perfect Differential Linearity Restoration” for Reduced Idle Tones and Noise Floor
105 dB (Typ) Dynamic Range
Supports 256/512 and 768 fS Master Clocks
Flexible Serial Data Port
Allows Right-Justified, Left-Justified, I2S Compatible and DSP Serial Port Modes
Cascadable (up to Four Devices) from a Single DSP SPORT
Device Control via SPI Compatible Serial Port or Optional Control Pins
On-Chip Reference
28-Lead SSOP Package
APPLICATIONS
Professional Audio
Mixing Consoles
Musical Instruments
Digital Audio Recorders, Including
CD-R, MD, DVD-R, DAT, HDD
Home Theater Systems
Automotive Audio Systems
Multimedia
