AD5312BRMZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD5312BRMZ
Manufacturer

ADI
ChipWorker Part#

CW189740
Category

Digital to Analog, DAC IC
Package

MSOP-10
Description

ANALOG DEVICES AD5312BRMZ Digital to Analog Converter, 10Bit, 143KSPS, Serial, 2.5V to 5.5V, SOP, 10Pins
Documentation

Datasheet

AD5312BRMZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD5312BRMZ Specifications

Attribute	Attribute Value

Part Number	AD5312BRMZ
Manufacturer	ADI
ChipWorker Part#	CW189740
Category	Digital to Analog, DAC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	MSOP-10
Supply Voltage (DC)	5.50V (max)
Number of Outputs	2 Output
Supply Current	300 µA
Number of Channels	2 Channel
Number of Positions	10 Position
Number of Bits	10 Bit
Power Dissipation	2.5 mW
Sample Rate	143 kHz
Resolution (Bits)	10.0 Bit
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2.5 mW
Number of DACs	2 DAC
Supply Voltage	2.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.5 V
	expand all
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

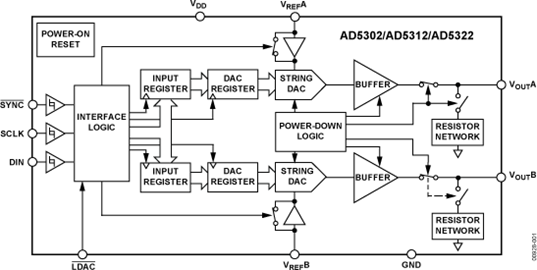

The AD5312BRMZ is a dual 10-bit buffered voltage output Digital-to-analog Converter (DAC) operates from a single 2.5 to 5.5V supply, consuming 230µA at 3V. Its on-chip output amplifier allows the outputs to swing rail-to-rail with a slew rate of 0.7V/µs. The AD5312 utilizes a versatile 3-wire serial interface that operates at clock rates up to 30MHz and is compatible with standard SPI®, QSPI™, MICROWIRE™ and DSP interface standards. The output of DAC can be updated simultaneously using the asynchronous LDAC input. The parts incorporate a power-on reset circuit, which ensures that the DAC outputs power-up to 0V and remain there until a valid write takes place to the device. The parts contain a power-down feature that reduces the current consumption of the devices to 200nA at 5V and provides software-selectable output loads while in power-down mode. The low power consumption of this part in normal operation makes them ideally suited for portable battery-operated equipment.
Double-buffered input logic
Guaranteed monotonic by design
Simultaneous update of DAC outputs via LDAC
Low power serial interface with Schmitt-triggered inputs
On-chip rail-to-rail output buffer amplifiers

expand all
