AD5318ARUZ - ADI

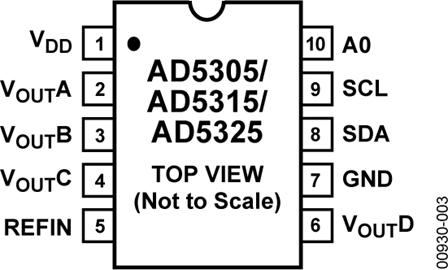

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD5318ARUZ
Manufacturer

ADI
ChipWorker Part#

CW399896
Category

Digital to Analog, DAC IC
Package

TSSOP-16
Description

Digital to Analog Converter, 10Bit, 167KSPS, Serial, 2.5V to 5.5V, TSSOP, 16Pins
Documentation

Datasheet

AD5318ARUZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD5318ARUZ Specifications

Attribute	Attribute Value

Part Number	AD5318ARUZ
Manufacturer	ADI
ChipWorker Part#	CW399896
Category	Digital to Analog, DAC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Number of Outputs	8 Output
Supply Current	1.00 mA
Number of Channels	8 Channel
Number of Positions	16 Position
Number of Bits	10 Bit
Power Dissipation	0.0045 W
Sample Rate	167 kHz
Resolution (Bits)	10.0 Bit
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	4.5 mW
Number of DACs	8 DAC
Supply Voltage	2.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.5 V
	expand all
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99

Product Description

The AD5318ARUZ is a 10-bit buffered voltage output Digital-to-analog Converter (DAC) operates from a single 2.5 to 5.5V supply consuming 0.7mA typical at 3V. Its on-chip output amplifier allows the outputs to swing rail-to-rail with a slew rate of 0.7V/µs. The AD5318 uses a versatile 3-wire serial interface that operates at clock rates up to 30MHz and is compatible with standard SPI, QSPI, MICROWIRE and DSP interface standards. The part incorporates a power-on reset circuit which ensures that the DAC outputs power up to 0V and remain there until a valid write to the device takes place. The outputs of DAC may be updated simultaneously using the asynchronous LDAC input. The parts contain a power-down feature that reduces the current consumption of the device to 400nA at 5V. The eight channels of the DAC may be powered down individually. It is offered in the same pin-out which allows users to select the resolution appropriate for their application without redesigning their circuit board.
Guaranteed monotonic by design over all codes
Double-buffered input logic
Programmability
Individual channel power-down
Simultaneous update of outputs
On-chip rail-to-rail output buffer amplifiers
