AD625JNZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD625JNZ
Manufacturer

ADI
ChipWorker Part#

CW259904
Category

Instrumentation Amplifier IC
Package

DIP-16
Description

ANALOG DEVICES AD625JNZ Instrument Amplifier, 5 Amplifier, 50μV, 5V/µs, 25MHz, ± 6V to ± 18V, DIP
Documentation

Datasheet

AD625JNZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD625JNZ Specifications

Attribute	Attribute Value

Part Number	AD625JNZ
Manufacturer	ADI
ChipWorker Part#	CW259904
Category	Instrumentation Amplifier IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Supply Voltage (DC)	15.0 V
Supply Current	3.5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Power Dissipation	0.45 W
Common Mode Rejection Ratio	115 dB
Bandwidth	25 MHz
Slew Rate	5.00 V/μs
Gain Bandwidth Product	25 MHz
Input Offset Voltage	50 µV
Input Bias Current	30 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
3dB Bandwidth	650 kHz
Gain Bandwidth	25 MHz
Power Dissipation (Max)	450 mW
Minimum CMRR Range	70 dB
Supply Voltage (Max)	30V ~ 50V
	expand all
Size-Length	19.18 mm
Size-Width	6.61 mm
Size-Height	3.56 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17

Product Description

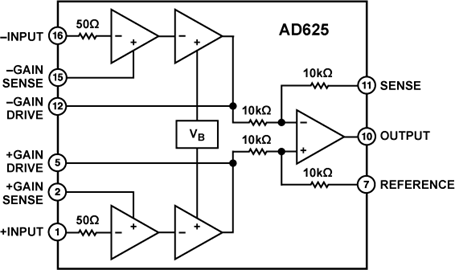

The AD625JNZ is a precision Instrumentation Amplifier specifically designed to fulfil two major areas of application - circuits requiring nonstandard gains and circuits requiring a precision software programmable gain amplifier. For low noise, high CMRR and low drift the AD625JN is the most cost effective instrumentation amplifier solution. An additional three resistors allow the user to set any gain from 1 to 10000. The error contribution of the AD625JN is less than 0.05% gain error and under 5ppm/°C gain TC, performance limitations are primarily determined by the external resistors. Common-mode rejection is independent of the feedback resistor matching.
0.02% Maximum low gain error
5ppm/°C Maximum low gain TC
0.001% Maximum low nonlinearity
25µV Low offset voltage
ESD sensitive device, electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.
