AD7278 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD7278
Manufacturer

ADI
ChipWorker Part#

CW983508007
Description

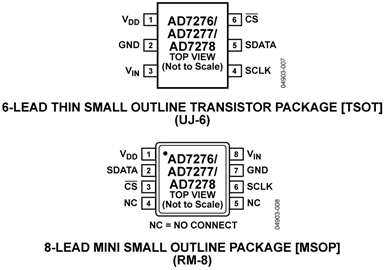

3MSPS, 8Bit ADC in 8-Lead MSOP and 6-Lead TSOT
Documentation

Datasheet

AD7278 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD7278 Specifications

Attribute	Attribute Value

Part Number	AD7278
Manufacturer	ADI
ChipWorker Part#	CW983508007
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Product Description

Product Details
The AD7278 is an 8-bit, high speed, low power, successive-approximation ADC. The parts operate from a single 2.35 V to 3.6 V power supply and feature throughput rates of up to 3 MSPS. The parts contain a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 55 MHz.
The conversion process and data acquisition are controlled using CS and the serial clock, allowing the devices to interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS, and the conversion is also initiated at this point. There are no pipeline delays associated with the part.
The AD7278 uses advanced design techniques to achieve very low power dissipation at high throughput rates.
The reference for the part is taken internally from VDD. This allows the widest dynamic input range to the ADC; therefore, the analog input range for the part is 0 to VDD. The conversion rate is determined by the SCLK
**Product Highlights**
1. 3 MSPS ADCs in a 6-lead TSOT package
2. AD7476/AD7477/AD7478 and AD7476A/AD7477A/ AD7478A pin-compatible
3. High throughput with low power consumption
4. Flexible power/serial clock speed management. This allows maximum power efficiency at low throughput rates
5. Reference derived from the power supply
6. No pipeline delay. The parts feature a standard successive approximation ADC with accurate control of the sampling instant via a CS input and once-off conversion control.
### Features and Benefits
Throughput rate: 3 MSPS
Specified for VDD of 2.35 V to
3.6 V
Power consumption
12.6 mW at 3 MSPS with 3 V supplies
Wide input bandwidth
70 dB SNR at 1 MHz input frequency
Flexible power/serial clock speed management
No pipeline delays
Temperature range: −40°C to +125°C
Please see data sheet for additional features.
