AD7628 - ADI

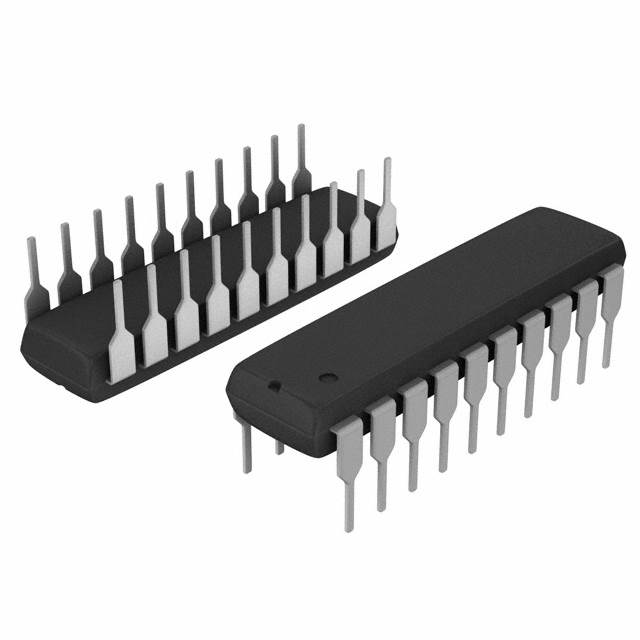

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD7628
Manufacturer

ADI
ChipWorker Part#

CW353128703
RoHS

Lead free / RoHS Compliant
Description

CMOS Dual 8Bit Buffered Multiplying DAC
Documentation

Datasheet

AD7628 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD7628 Specifications

Attribute	Attribute Value

Part Number	AD7628
Manufacturer	ADI
ChipWorker Part#	CW353128703
Documentation	Datasheet
	expand all
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Product Details

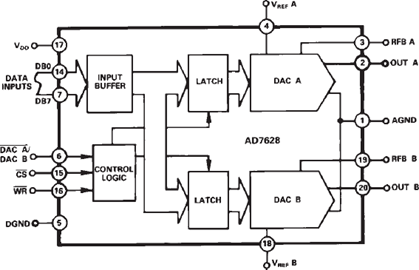

The AD7628 is a monolithic dual 8-bit digital/analog converter featuring excellent DAC-to-DAC matching. It is available in small 0.3" wide 20-pin DIPs and in 20-terminal surface mount packages.
Separate on-chip latches are provided for each DAC to allow easy microprocessor interface.
Data is transferred into either of the two DAC data latches via a common 8-bit TTL/CMOS compatible input port. Control input DAC A/DAC B determines which DAC is to be loaded. The AD7628"s load cycle is similar to the write cycle of a random access memory, and the device is bus compatible with most 8-bit microprocessors, including 6502, 6809, 8085, Z80.
The device operates from a +12 V to +15 V power supply and is TTL-compatible over this range. Power dissipation is a low 20 mW.
Both DACs offer excellent four quadrant multiplication characteristics with a separate reference input and feedback resistor for each DAC.
**APPLICATIONS**
Disk Drives
Programmable Filters
X-Y Graphics
Gain/Attenuation
### Features and Benefits
On-Chip Latches for both DACs
+12 V to +15 V Operation
DACs matched to 1%
Four Quadrant Multiplication
TTL/CMOS Compatible from +12 V to +15 V
Latch Free (Protection Schottkys not Required)
