AD7945BRSZ ,Digital to Analog, DAC IC - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

182 points

Part No

AD7945BRSZ
Manufacturer

ADI
ChipWorker Part#

CW1552673
Category

Digital to Analog, DAC IC
Package

SSOP-20
Description

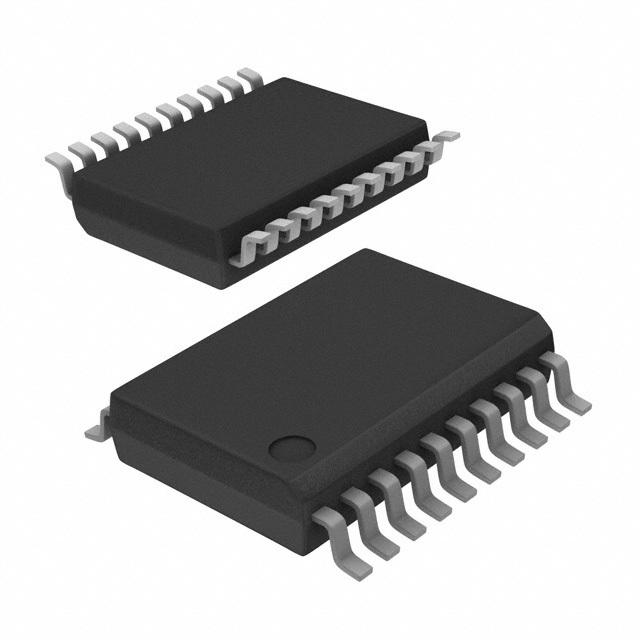

ANALOG DEVICES AD7945BRSZ Digital to Analog Converter, 12Bit, 4.5V to 5.5V, SSOP, 20Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

190636 pcs In Stock
Estimated Price

$ 4.75

Buy AD7945BRSZ

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD7945BRSZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD7945BRSZ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD7945BRSZ
Manufacturer	ADI
ChipWorker Part#	CW1552673
Category	Digital to Analog, DAC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SSOP-20
Supply Current	5.00 µA
Number of Positions	20 Position
Number of Bits	12 Bit
Power Dissipation	875 mW
Resolution (Bits)	12.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	875 mW
Number of DACs	1 DAC
Supply Voltage	4.5V ~ 5.5V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Product Details

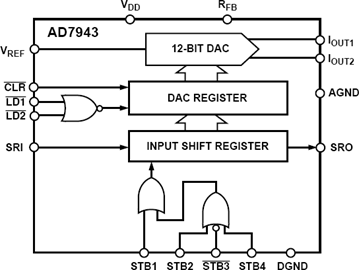

The AD7943, AD7945 and AD7948 are fast 12-bit multiplying DACs that operate from a single +5 V supply (Normal Mode) and a single +3.3 V to +5 V supply (Biased Mode). The AD7943 has a serial interface, the AD7945 has a 12-bit parallel interface, and the AD7948 has an 8-bit byte interface. They will replace the industry-standard AD7543, AD7545 and AD7548 in many applications, and they offer superior speed and power consumption performance.
The AD7943 is available in 16-pin DIP, 16-pin SOP (Small Outline Package) and 20-pin SSOP (Shrink Small Outline Package).
The AD7945 is available in 20-pin DIP, 20-pin SOP and 20-pin SSOP.
The AD7948 is available in 20-pin DIP, 20-pin SOP and 20-pin SSOP.
### Features and Benefits
12-Bit Multiplying DACs
0.5 LSBs INL and DNL
Fast Interface:
40 ns Strobe Pulsewidth (AD7943)
40 ns Write Pulsewidth (AD7945, A7948)
Guaranteed Specifications wth +3.3 V/+5 Supply
Low Power: 5 µW typ
Low Glitch: 60 nV-s with Amplifier Connected
Fast Settling: 600 ns to 0.01% with AD843

expand all
