AD8038 - ADI

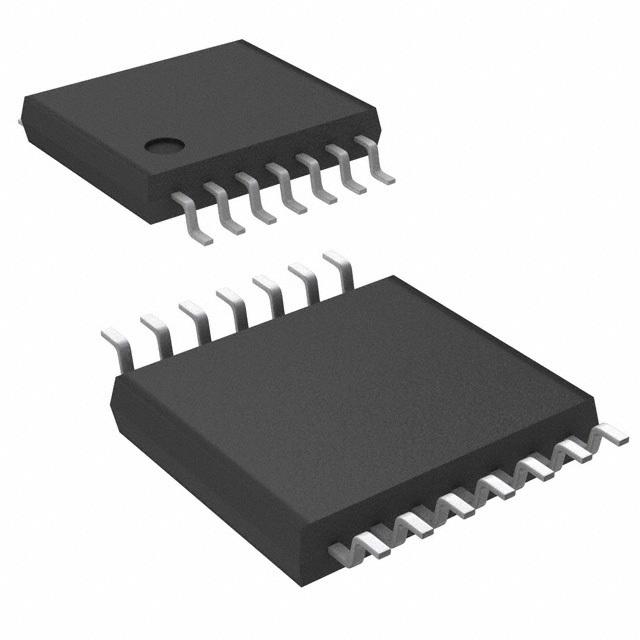

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD8038
Manufacturer

ADI
ChipWorker Part#

CW389452685
Description

Low Power 350MHz Voltage Feedback Amplifiers
Documentation

Datasheet

AD8038 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD8038 Specifications

Attribute	Attribute Value

Part Number	AD8038
Manufacturer	ADI
ChipWorker Part#	CW389452685
Documentation	Datasheet
Case/Package	SC-70
	expand all
Product Lifecycle Status	Active

Product Description

PRODUCT DESCRIPTION
The AD8038 (single) and AD8039 (dual) amplifiers are high speed (350 MHz) voltage feedback amplifiers with an exception ally low quiescent current of 1.0 mA/amplifier typical (1.5 mA max). The AD8038 single amplifier in the SOIC-8 package has a disable feature. Despite being low power and low cost, the amplifier provides excellent overall performance. Additionally, it offers a high slew rate of 425 V/µs and low input offset voltage of 3 mV max.
FEATURES
Low Power
1 mA Supply Current/Amp
High Speed
350 MHz, –3 dB Bandwidth (G = +1)
425 V/us Slew Rate
Low Cost
Low Noise
8 nV/√Hz @ 100 kHz
600 fA/√Hz @ 100 kHz
Low Input Bias Current: 750 nA Max
Low Distortion
–90 dB SFDR @ 1 MHz
–65 dB SFDR @ 5 MHz
Wide Supply Range: 3 V to 12 V

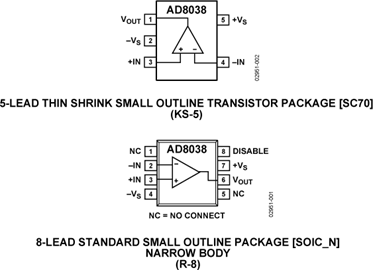

Small Packaging: SOT-23-8, SC70-5, and SOIC-8
APPLICATIONS
Battery-Powered Instrumentation
Filters
A/D Drivers
Level Shifting
Buffering
High Density PC Boards
Photo Multipliers

expand all
