AD8221BRZ ,Instrumentation Amplifier IC - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

204 points

Part No

AD8221BRZ
Manufacturer

ADI
ChipWorker Part#

CW233192
Category

Instrumentation Amplifier IC
Package

SOIC-8
Description

ANALOG DEVICES AD8221BRZ Instrument Amplifier, 1 Amplifier, 25µV, 2V/µs, 825kHz, ± 2.3V to ± 18V, NSOIC
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 7.99

Buy AD8221BRZ

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD8221BRZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD8221BRZ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD8221BRZ
Manufacturer	ADI
ChipWorker Part#	CW233192
Category	Instrumentation Amplifier IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Current	900 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Power Dissipation	0.2 W
Common Mode Rejection Ratio	140 dB
Bandwidth	825 kHz
Slew Rate	2.00 µV/μs
Gain Bandwidth Product	1.5 MHz
Input Offset Voltage	25 µV
Input Bias Current	200 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	825 kHz
Power Dissipation (Max)	200 mW
Minimum CMRR Range	140 dB
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	2.3 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17

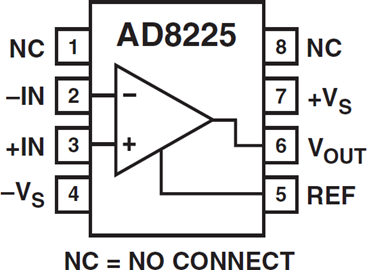

Similar & Replacement Parts

Similar products

Product Description

Product Details
The AD8221 is a gain programmable, high performance instrumentation amplifier that delivers the industry’s highest CMRR over frequency in its class. The CMRR of instrumentation amplifiers on the market today falls off at 200 Hz. In contrast, the AD8221 maintains a minimum CMRR of 80 dB to 10 kHz for all grades at G = 1. High CMRR over frequency allows the AD8221 to reject wideband interference and line harmonics, greatly simplifying filter requirements. Possible applications include precision data acquisition, biomedical analysis, and aerospace instrumentation.
Low voltage offset, low offset drift, low gain drift, high gain accuracy, and high CMRR make this part an excellent choice in applications that demand the best dc performance possible, such as bridge signal conditioning.
Programmable gain affords the user design flexibility. A single resistor sets the gain from 1 to 1000. The AD8221 operates on both single and dual supplies and is well suited for applications where ±10 V input voltages are encountered.
The AD8221 is available in a low cost 8-lead SOIC and 8-lead MSOP, both of which offer the industry’s best performance. The MSOP requires half the board space of the SOIC, making it ideal for multichannel or space-constrained applications.
Performance is specified over the entire industrial temperature range of −40°C to +85°C for all grades. Furthermore, the AD8221 is operational from −40°C to +125°C.
**Applications**
Weigh scales
Industrial process controls
Bridge amplifiers
Precision data acquisition systems
Medical instrumentation
Strain gages
Transducer interfaces
### Features and Benefits
Available in space-saving MSOP
Gain set with 1 external resistor (gain range 1 to 1000)
Wide power supply range: ±2.3 V to ±18 V
Temperature range for specified performance: −40°C to +85°C
Operational up to 125°C
Excellent AC specifications
80 dB minimum CMRR to 10 kHz (G = 1)
825 kHz, –3 dB bandwidth (G = 1)
2 V/µs slew rate
See data sheet for additional features
**AD8221-EP supports defense and aerospace applications (AQEC standard)**
Download AD8221-EP Data Sheet
Military temperature range (−55°C to +125°C)
Controlled manufacturing baseline
One assembly/test site
One fabrication site
Enhanced product change notification
Qualification data available on request
V62/16619 DSCC Drawing Number
