S29JL064J70TFI000 ,Flash Memory, Flash - Cypress Semiconductor

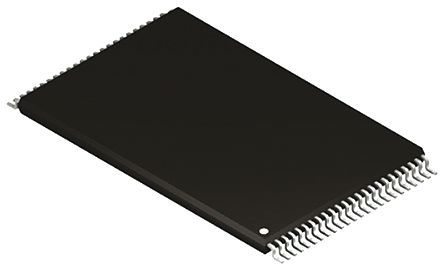

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

119 points

Part No

S29JL064J70TFI000
Manufacturer

Cypress Semiconductor
ChipWorker Part#

CW15421692
Category

Flash Memory, Flash
Package

TSOP-48
Description

NOR Flash Parallel 3V/3.3V 64Mbit 8M/4M x 8Bit/16Bit 70ns 48Pin TSOP Tray
Documentation

Datasheet
Ships from

Moscow
Наличие

3800 pcs In Stock
Estimated Price

$ 4.08

Buy S29JL064J70TFI000

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

S29JL064J70TFI000 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

S29JL064J70TFI000 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	S29JL064J70TFI000
Manufacturer	Cypress Semiconductor
ChipWorker Part#	CW15421692
Category	Flash Memory, Flash
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	TSOP-48
Supply Current	16 mA
Number of Positions	48 Position
Number of Bits	8, 16 Bit
Access Time	70 ns
Memory Size	8000000 B
Access Time(Max)	70 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

S29GL128P11TFI020

Cypress Semiconductor

159715 шт.

1.42 $/шт.

S29AL008J70TFI023

Cypress Semiconductor

Product Description

The S29JL064J70TFI000 is a 64MB CMOS simultaneous Read/Write Flash Memory organized as 4194304 words of 16-bit each or 8388608 bytes of 8-bit each. Word mode data appears on DQ15-DQ0, byte mode data appears on DQ7-DQ0. The device is designed to be programmed in-system with the standard 3VCC supply and can also be programmed in standard EPROM programmers. The device is available with an access time of 70ns. Standard control pins - chip enable (CE#), write enable (WE#) and output enable (OE#) - control normal read and write operations and avoid bus contention issues. The device requires only a single 3V power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations.
