AD8271 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD8271
Manufacturer

ADI
ChipWorker Part#

CW760521724
Description

Programmable Gain Precision Difference Amplifier
Documentation

Datasheet

AD8271 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD8271 Specifications

Attribute	Attribute Value

Part Number	AD8271
Manufacturer	ADI
ChipWorker Part#	CW760521724
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Product Description

Product Details
The AD8271 is a low distortion, precision difference amplifier with internal gain setting resistors. With no external components, it can be configured as a high performance difference amplifier with gains of ½, 1, or 2. It can also be configured in over 40 single-ended configurations, with gains ranging from −2 to +3.

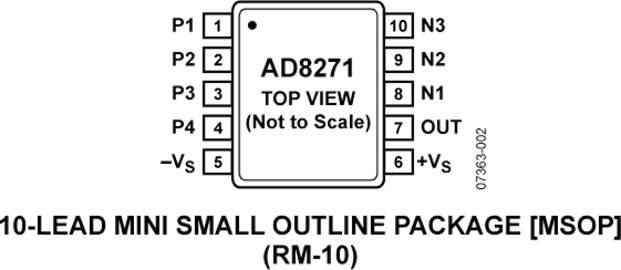

The AD8271 comes in a 10-lead MSOP package. The AD8271 operates on both single and dual supplies and requires only a 2.6 mA maximum supply current. It is specified over the industrial temperature range of −40°C to +85°C and is fully RoHS compliant.
For a dual channel version of the AD8271, see the AD8270 data sheet.
**Applications**
* ADC driver
* Instrumentation amplifier building blocks
* Level translators
* Automatic test equipment
* High performance audio
* Sine/cosine encoders
### Features and Benefits
With no external resistors:
Difference amp, gains of ½, 1, or 2
Single-ended amplifier: over 40 different gains
Set reference voltage at midsupply
Excellent ac specifications
15 MHz bandwidth
30 V/μs slew rate
High accuracy dc performance
0.08% maximum gain error
10 ppm/°C maximum gain drift
80 dB minimum CMRR (gain of 2)
10-lead MSOP package
Supply current: 2.6 mA
Supply range: ±2.5 V to ±18 V
