AD8352 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD8352
Manufacturer

ADI
ChipWorker Part#

CW430797015
Description

2GHz Ultralow Distortion Differential RF/IF Amplifier
Documentation

Datasheet

AD8352 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD8352 Specifications

Attribute	Attribute Value

Part Number	AD8352
Manufacturer	ADI
ChipWorker Part#	CW430797015
Documentation	Datasheet
	expand all
Product Lifecycle Status	Recommended for New Designs

Product Description

Product Details
The AD8352 is a high performance differential amplifier optimized for RF and IF applications. It achieves better than 80 dB SFDR performance at frequencies up to 200 MHz, and 65 dB beyond 500 MHz, making it an ideal driver for high speed 12-bit to 16-bit analog-to-digital converters (ADCs).
Unlike other wideband differential amplifiers, the AD8352 has buffers that isolate the gain setting resistor (RG) from the signal inputs. As a result, the AD8352 maintains a constant 3 kΩ input resistance for gains of 3 dB to 25 dB, easing matching and input drive requirements. The AD8352 has a nominal 100 Ω differential output resistance.

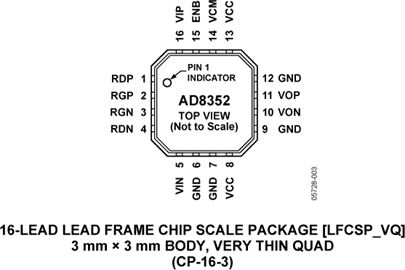

The device is optimized for wideband, low distortion performance at frequencies beyond 500 MHz. These attributes, together with its wide gain adjust capability, make this device the amplifier of choice for general-purpose IF and broadband applications where low distortion, noise, and power are critical. It is ideally suited for driving not only ADCs, but also mixers, pin diode attenuators, SAW filters, and multi-element discrete devices. The device is available in a compact 3 mm × 3 mm, 16-lead LFCSP and operates over a temperature range of −40°C to +85°C.
**Applications**
* Differential ADC drivers
* Single-ended-to-differential conversion
* RF/IF gain blocks
* SAW filter interfacing
### Features and Benefits
−3 dB bandwidth of 2.2 GHz (AV = 10 dB)
Single resistor gain adjust: 3 dB < AV < 25 dB
Single resistor and capacitor distortion adjust
Input resistance: 3 kΩ, independent of gain (AV)
Differential or single-ended input to differential output
Low noise input stage: 2.7 nV/√Hz RTI @ AV = 10 dB
Low broadband distortion:
10 MHz: −86 dBc HD2, −82 dBc HD3
70 MHz: −84 dBc HD2, −82 dBc HD3
190 MHz: −81 dBc HD2, −87 dBc HD3
OIP3 of 41 dBm @ 150 MHz
Slew rate: 8 V/ns
Fast settling and overdrive recovery of 2 ns
See data sheet for additional Features
