AD9901KPZ - ADI

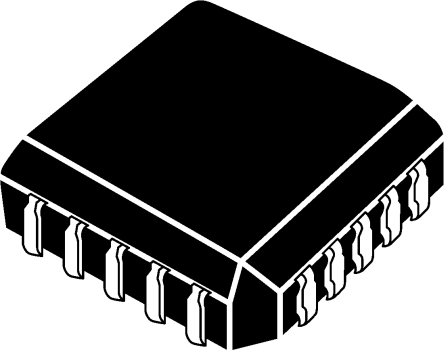

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD9901KPZ
Manufacturer

ADI
ChipWorker Part#

CW422700
Category

Clock Generator IC
Package

PLCC-20
Description

Clock Generator 200MHz Input 20Pin PLCC Tube
Documentation

Datasheet

AD9901KPZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD9901KPZ Specifications

Attribute	Attribute Value

Part Number	AD9901KPZ
Manufacturer	ADI
ChipWorker Part#	CW422700
Category	Clock Generator IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	PLCC-20
Frequency	200 MHz
Supply Voltage (DC)	7.00V (max)
Number of Outputs	1 Output
Supply Current	54 mA
Number of Circuits	1 Circuit
Number of Positions	20 Position
Power Dissipation	218 mW
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	218 mW
Supply Voltage	5 V
Supply Voltage (Max)	7 V
	expand all
Size-Length	9.04 mm
Size-Width	9.04 mm
Size-Height	3.68 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The AD9901KPZ is a Digital Phase/Frequency Discriminator capable of directly comparing phase/frequency inputs up to 200MHz. Processing in a high speed trench-oxide isolated process, combined with an innovative design, gives the AD9901 a linear detection range, free of indeterminate phase detection zones common to other digital designs. With a single +5V supply, the AD9901 can be configured to operate with TTL or CMOS logic levels, it can also operate with ECL inputs when operated with a -5.2V supply. The open-collector outputs allow the output swing to be matched to post-filtering input requirements. A simple current setting resistor controls the output stage current range, permitting a reduction in power when operated at lower frequencies. A major feature of the AD9901 is its ability to compare phase/frequency inputs at standard IF frequencies without prescalers. Excessive phase uncertainty which is common with standard PLL configurations is also eliminated.
