ADCMP602BRMZ ,Comparator, Analog Comparator IC - ADI

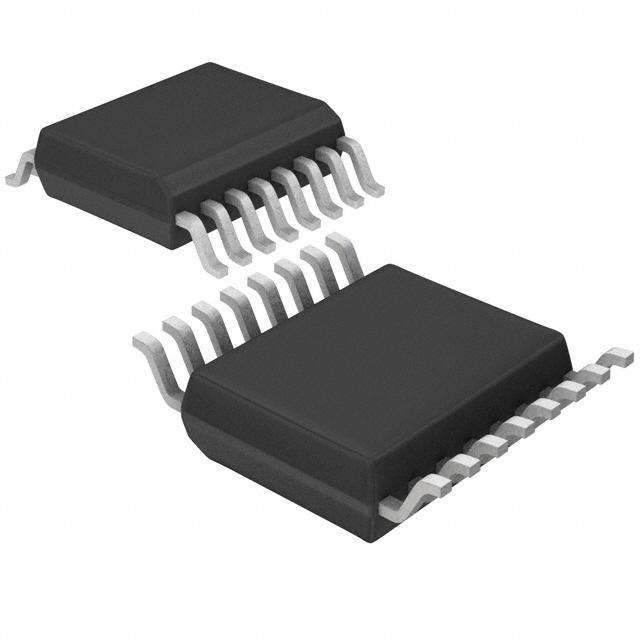

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

197 points

Part No

ADCMP602BRMZ
Manufacturer

ADI
ChipWorker Part#

CW485559
Category

Comparator, Analog Comparator IC
Package

MSOP-8
Description

ANALOG DEVICES ADCMP602BRMZ Analog Comparator, Single, High Speed, 1, 3.5ns, 2.5V to 5.5V, ± 3V, ± 5.5V, MSOP, 8Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 2.94

Buy ADCMP602BRMZ

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ADCMP602BRMZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ADCMP602BRMZ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ADCMP602BRMZ
Manufacturer	ADI
ChipWorker Part#	CW485559
Category	Comparator, Analog Comparator IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Output Current	50 mA
Supply Current	4 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	23 W
Common Mode Rejection Ratio	50 dB
Input Offset Voltage	5 mV
Input Bias Current	5000 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	23 mW
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.5 V
	expand all
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

The ADCMP602BRMZ is a rail-to-rail very fast single-supply Comparator fabricated on proprietary XFCB2 process. This comparator is exceptionally versatile and easy to use. Features include TTL/CMOS-compatible output drivers and latch inputs with adjustable hysteresis and shutdown inputs. The device offers 5ns propagation delay with 10mV overdrive on 3mA typical supply current. A flexible power supply scheme allows the device to operate with a single 2.5V positive supply and -0.5 to 2.8V input signal range up to a 5.5V positive supply with -0.5 to 5.8V input signal range. Split input/output supplies with no sequencing restrictions on the ADCMP602 support a wide input signal range while still allowing independent output swing control and power savings. The TTL/CMOS-compatible output stage is designed to drive up to 5pF with full timing specs and to degrade in a graceful and linear fashion as additional capacitance is added.
Low glitch
Shutdown pin
Single-pin control for programmable hysteresis and latch
>50dB Power supply rejection
Improved replacement for MAX999
