ADG436BRZ - ADI

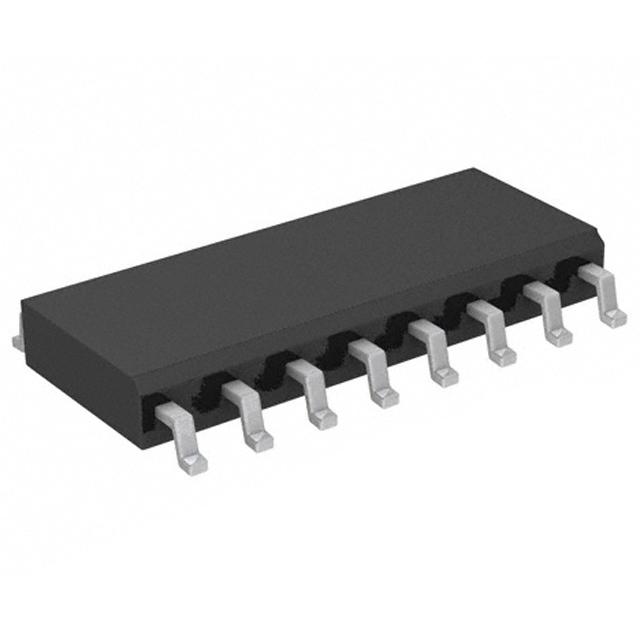

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADG436BRZ
Manufacturer

ADI
ChipWorker Part#

CW374533
Category

Analog Switch Ic, Analog Switch Multiplexer
Package

SOIC-16
Description

Analog Devices ADG436BRZ, Analogue SPDT Switch Dual SPDT, 5V, 9V, 12V, 15V, 18V, 24V, 28V, 16Pin SOIC
Documentation

Datasheet

ADG436BRZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADG436BRZ Specifications

Attribute	Attribute Value

Part Number	ADG436BRZ
Manufacturer	ADI
ChipWorker Part#	CW374533
Category	Analog Switch Ic, Analog Switch Multiplexer
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Number of Outputs	4 Output
Contacts Type	SPDT
Supply Current	50 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	16 Position
Drain to Source Resistance (on) (Rds)	12.0 mΩ
Number of Bits	2 Bit
Power Dissipation	0.0053 W
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 30V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	3 V
	expand all
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The ADG436BRZ is a single-pole double-throw (SPDT) monolithic dual CMOS Analog Switch designed on an LC² MOS process, which provides low power dissipation yet gives high switching speed and low on resistance. The on resistance profile is very flat over the full analog input range, ensuring good linearity and low distortion when switching audio signals. High switching speed also makes the part suitable for video signal switching. CMOS construction ensures ultralow power dissipation, making the part ideally suited for portable and battery-powered instruments. Each switch conducts equally well in both directions when on and has an input signal range which extends to the power supplies. In the off condition, signal levels up to the supplies are blocked. It exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.
VSS to VDD Analog signal range
Low power dissipation
Fast switching times
Break-before-make switching action
Low RON
Single-supply operation
5nA Maximum low leakage currents
10pC Low charge injection

expand all
