FNA41560 - Fairchild

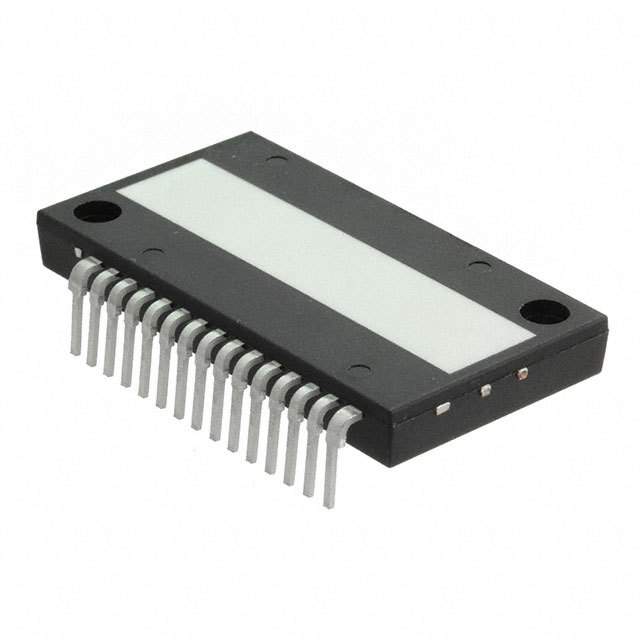

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FNA41560
Manufacturer

Fairchild
ChipWorker Part#

CW49467633
Category

Transistor
Package

SPMAA-C-26
Description

Trans IGBT Module N-CH 600V 15A 26Pin SPM26-AA Rail
Documentation

Datasheet

FNA41560 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FNA41560 Specifications

Attribute	Attribute Value

Part Number	FNA41560
Manufacturer	Fairchild
ChipWorker Part#	CW49467633
Category	Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	26 Pin
Case/Package	SPMAA-C-26
Power Dissipation	41 W
Isolation Voltage	2000 Vrms
Switching Frequency	5 kHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	41000 mW
	expand all
Size-Length	39.5 mm
Size-Width	23.5 mm
Size-Height	4.8 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Power Driver Module IGBT 3 Phase 600V 15A 26-PowerDIP Module (1.024", 26.00mm)
