ADIS16488BMLZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADIS16488BMLZ
Manufacturer

ADI
ChipWorker Part#

CW14377219
Category

Gyroscopes Sensor, Gyroscope
Description

Inertial Sensor Analog Output 3.3V 24Pin Tray
Documentation

Datasheet

ADIS16488BMLZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

ADIS16488BMLZ Specifications

Attribute	Attribute Value

Part Number	ADIS16488BMLZ
Manufacturer	ADI
ChipWorker Part#	CW14377219
Category	Gyroscopes Sensor, Gyroscope
Documentation	Datasheet

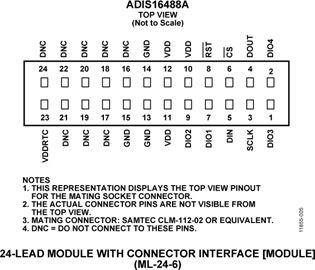

Number of Pins	24 Pin
Supply Voltage (DC)	3.00V (min)
Supply Current	254 mA
Number of Positions	24 Position
Bandwidth	330 Hz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	7A994
HK STC License	NLR

Product Description

The ADIS16488A series iSensor® Inertial Sensor System that includes a 3-axis gyroscope, a 3-axis accelerometer, 3-axis magnetometer and pressure sensor. Each inertial sensor in the ADIS16488A combines industry-leading iMEMS® technology with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias, alignment and linear acceleration (gyroscope bias). As a result, each sensor has its own dynamic compensation formulas that provide accurate sensor measurements. The ADIS16488A provides a simple method for integrating accurate, multi-axis inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. All necessary motion testing and calibration are part of the production process at the factory, greatly reducing system integration time. Tight orthogonal alignment simplifies inertial frame alignment in navigation systems.
SPI and register structure provide a simple interface for data collection and configuration control
±0.05° Orthogonal alignment error
5.1°/hr. In-run bias stability
0.26°/√hr. Angular random walk
0.01% Nonlinearity
Triaxial, delta angle and delta velocity outputs
Triaxial, digital magnetometer, ±2.5 gauss
Digital pressure sensor, 300mbar to 1100mbar
Fast start-up time
Factory-calibrated sensitivity, bias and axial alignment
Automatic and manual bias correction controls
4 FIR filter banks, 120 configurable taps
Digital input/output - Data-ready alarm indicator, external clock
Alarms for condition monitoring
Power-down/sleep mode for power management
Optional external sample clock input up to 2.4kHz
Single command self test
2000g Shock survivability
