ADL5519 - ADI

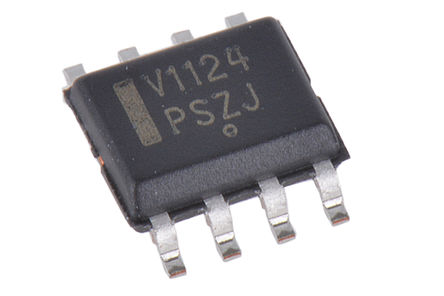

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADL5519
Manufacturer

ADI
ChipWorker Part#

CW389476567
RoHS

Lead free / RoHS Compliant
Description

1MHz to 10GHz, 62dB Dual Log Detector/Controller
Documentation

Datasheet

ADL5519 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADL5519 Specifications

Attribute	Attribute Value

Part Number	ADL5519
Manufacturer	ADI
ChipWorker Part#	CW389476567
Documentation	Datasheet
	expand all
Product Lifecycle Status	Recommended for New Designs
RoHS	RoHS Compliant

Product Description

Product Details
The ADL5519 is a dual-demodulating logarithmic amplifier that incorporates two AD8317s. It can accurately convert an RF input signal into a corresponding decibel-scaled output. The ADL5519 provides accurately scaled, independent, logarithmic output voltages for both RF measurement channels. The device has two additional output ports, OUTP and OUTN, that provide the measured differences between the OUTA and OUTB channels. The on-chip channel matching makes the log amp outputs insensitive to temperature and process variations.
The temperature sensor pin provides a scaled voltage that is proportional to the temperature over the operating temperature range of the device.
The ADL5519 maintains accurate log conformance for signals from 1 MHz to 8 GHz and provides useful operation to 10 GHz. The ±3 dB dynamic range is typically 62 dB and has a ±1 dB dynamic range of >50 dB (re: 50 Ω). The ADL5519 has a response time of 6 ns/8 ns (fall time/rise time) that enables RF burst detection to a pulse rate of greater than 50 MHz. The device provides unprecedented logarithmic intercept stability vs. ambient temperature conditions. A supply of 3.3 V to 5.5 V is required to power the device. Current consumption is typically 60 mA, and it decreases to less than 1 mA when the device is disabled.
The device is capable of supplying four log amp measurements simultaneously. Linear-in-dB measurements are provided at OUTA and OUTB with conveniently scaled slopes of −22 mV/dB. The log amp difference between OUTA and OUTB is available as differential or single-ended signals at OUTP and OUTN. An optional voltage applied to VLVL provides a common-mode reference level to offset OUTP and OUTN above ground. The broadband output pins can support many system solutions.
Any of the ADL5519 output pins can be configured to provide a control voltage to a variable gain amplifier (VGA). Special attention has been paid to minimize the broadband noise of the output pins so that they can be used for controller applications.
The ADL5519 is fabricated on a SiGe bipolar IC process and is available in a 5 mm × 5 mm, 32-lead LFCSP with an operating temperature range of −40°C to +125°C.
**Applications**
RF transmitter power amplifier linearization and gain/power control
Power monitoring in radio link transmitters
Dual-channel wireless infrastructure radios
Antenna VSWR monitor
RSSI measurement in base stations, WLAN, WiMAX, radar
### Features and Benefits
Wide bandwidth: 1 MHz to 10 GHz
Dual-channel and channel difference output ports
Integrated accurate scaled temperature sensor
62 dB dynamic range (±3 dB)
>50 dB with ±1 dB up to 8 GHz
Stability over temperature: ±0.5 dB (−40oC to +85oC)
Low noise detector/controller outputs
Pulse response time: 6 ns/8 ns (fall time/rise time)
Supply operation: 3.3 V to 5.5 V @ 60 mA
Fabricated using high speed SiGe process
Small footprint, 5 mm × 5 mm, 32-lead LFCSP
Operating temperature range: −40°C to +125°C
