ADN4668ARUZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADN4668ARUZ
Manufacturer

ADI
ChipWorker Part#

CW1563250
Category

Interface IC, Interface Controller
Package

TSSOP-16
Description

Analog Devices ADN4668ARUZ, LVDS Receiver Quad CMOS, LVTTL, 3 → 3.6V, 16Pin, TSSOP
Documentation

Datasheet

ADN4668ARUZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADN4668ARUZ Specifications

Attribute	Attribute Value

Part Number	ADN4668ARUZ
Manufacturer	ADI
ChipWorker Part#	CW1563250
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Supply Current	15 mA
Input Voltage (Max)	0 V
Input Current (Min)	20 μA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	expand all
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	5A991.b.4

Product Description

GENERAL DESCRIPTION
The ADN4668 is a quad-channel CMOS, low voltage differential signaling (LVDS) line receiver offering data rates of over 400 Mbps (200 MHz) and ultralow power consumption. It features a flow through pin configuration for easy PCB layout and separation of input and output signals.
FEATURES
±15 kV ESD protection on receiver input pins
400 Mbps (200 MHz) switching rates
Flow-through pin configuration simplifies PCB layout
150 ps channel-to-channel skew (typical)
100 ps differential skew (typical)
2.7 ns maximum propagation delay
3.3 V power supply
High impedance outputs on power-down
Low power design (3 mW quiescent typical)
Interoperable with existing 5 V LVDS drivers
Accepts small swing (310 mV typical) differential input signal levels
Supports open, short, and terminated input fail-safe
0 V to −100 mV threshold region
Conforms to TIA/EIA-644 LVDS standard
Industrial operating temperature range of −40°C to +85°C
Available in 16-lead surface-mount SOIC and 16-lead low profile TSSOP package
APPLICATIONS

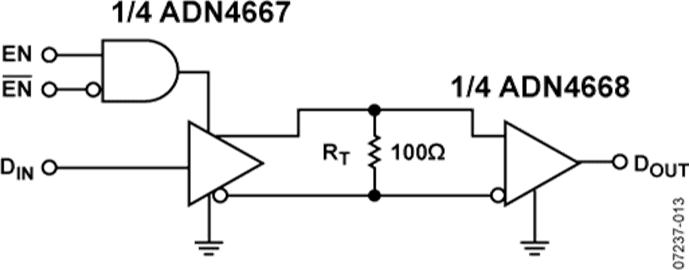

Point-to-point data transmission
Multidrop buses
Clock distribution networks
Backplane receivers
