MAX6954 - Maxim Integrated

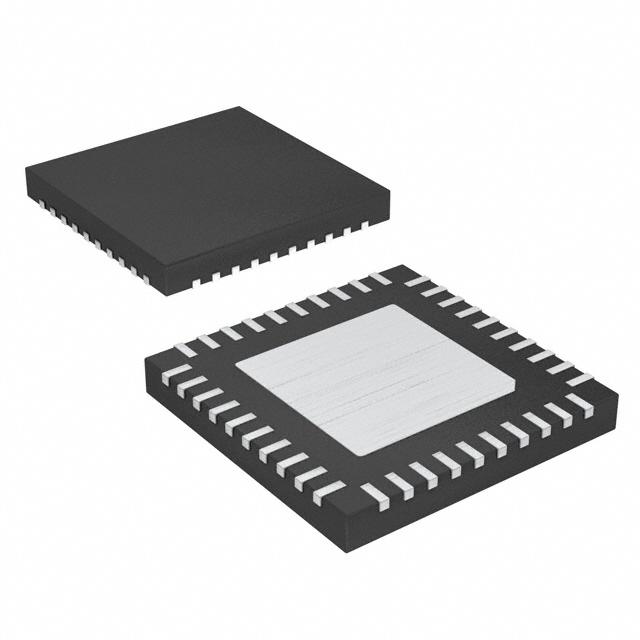

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

17 points

Part No

MAX6954
Manufacturer

Maxim Integrated
ChipWorker Part#

CW481496966
Package

SSOP-36
Description

4-Wire Interfaced, 2.7V to 5.5V LED Display Driver with I/O Expander and Key Scan
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy MAX6954

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

MAX6954 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

MAX6954 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	MAX6954
Manufacturer	Maxim Integrated
ChipWorker Part#	CW481496966
Documentation	Datasheet
Case/Package	SSOP-36
	expand all
RoHS	RoHS Compliant

Similar & Replacement Parts

Similar products

Product Description

General Description

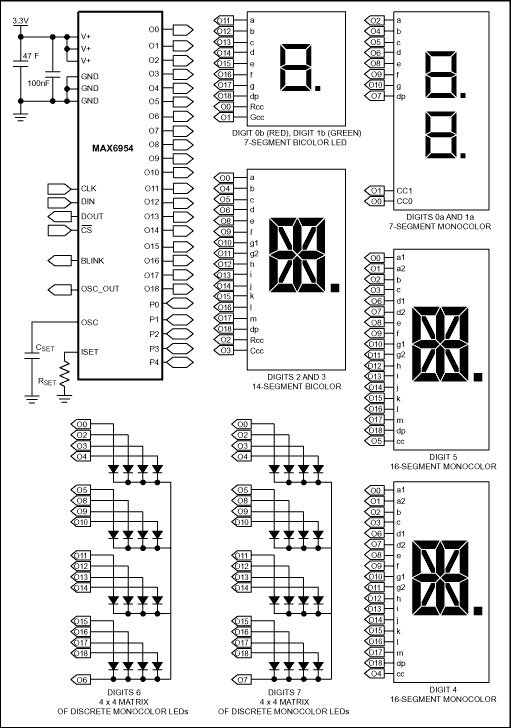

The MAX6954 is a compact display driver that interfaces microprocessors to a mix of 7-segment, 14-segment, and 16-segment LED displays through an SPI™- or QSPI™-compatible 4-wire serial interface. The serial interface may be cascaded through multiple devices. The MAX6954 drives up to 16 digits 7-segment, 8 digits 14-segment, 8 digits 16-segment, or 128 discrete LEDs, while functioning from a supply voltage as low as 2.7V. The driver includes five I/O expander (or GPIO) lines, some or all of which may be configured as a key switch reader, which automatically scans and debounces a matrix of up to 32 switches.
Features
♦ High-Speed 26MHz SPI/QSPI/MICROWIRE™-Compatible Serial Interface
♦ 2.7V to 5.5V Operation
♦ Drives Up to 16 Digits 7-Segment, 8 Digits 14-Segment, 8 Digits 16-Segment, 128 Discrete LEDs, or a Combination of Digit Types
♦ Drives Common-Cathode Monocolor and Bicolor LED Displays
♦ Built-In ASCII 104-Character Font for 14-Segment and 16-Segment Digits and Hexadecimal Font for 7-Segment Digits
♦ Automatic Blinking Control for each Segment
♦ 10µA (typ) Low-Power Shutdown (Data Retained)
♦ 16-Step Digit-by-Digit Digital Brightness Control
♦ Display Blanked on Power-Up
♦ Slew-Rate Limited Segment Drivers for Lower EMI
♦ Five GPIO Port Pins Can Be Configured as Key Switch Reader to Scan and Debounce Up to 32 Switches with n-Key Rollover
♦ IRQ Output when a Key Input Is Debounced
♦ 36-Pin SSOP and 40-Pin DIP and TQFN Packages
♦ Automotive Temperature Range Standard
Applications
Set-Top Boxes
Automotive
Panel Meters
Bar Graph Displays
White Goods
Audio/Video Equipment
