ADP3303 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ADP3303
Manufacturer	ADI
ChipWorker Part#	CW760472210
Documentation	Datasheet
	expand all
Product Lifecycle Status	Unknown

Similar & Replacement Parts

Product Description

Product Details

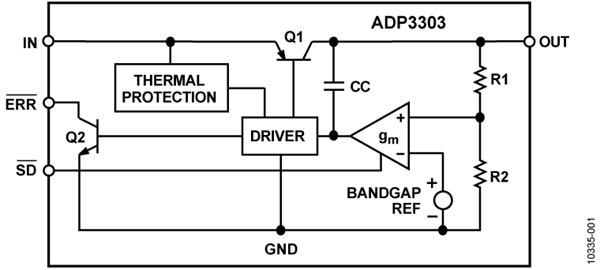

The ADP3303 is a member of the ADP3300, ADP3301, and ADP3309 family of precision low dropout anyCAP voltage regulators. The ADP3303 stands out from the conventional LDOs with a different architecture, an enhanced process, and a different package. Its patented design requires only a 0.47 μF output capacitor for stability. This device is insensitive to capacitor Equivalent Series Resistance (ESR) and is stable with any good quality capacitor, including ceramic types (MLCC) for space restricted applications. The ADP3303 achieves exceptional accuracy of ±0.8% at room temperature and ±1.4% overall accuracy over temperature, line, and load regulations. The dropout voltage of the ADP3303 is only 180 mV (typical) at 200 mA.
In addition to the architecture and process, the Analog Devices, Inc., proprietary thermally enhanced package (Thermal Coastline) can handle 1 W of power dissipation without external heatsink or large copper surface on the printed circuit board (PCB).
This keeps PCB real estate to a minimum and makes the ADP3303 very attractive for use in portable equipment.
The ADP3303 operates with a wide input voltage range from 3.2 V to 12 V and delivers a load current in excess of 200 mA.
It features an error flag that signals when the device is about to lose regulation or when the short circuit or thermal overload protection is activated. Other features include shutdown and optional noise reduction capabilities. The ADP3300, ADP3301, and ADP3309 anyCAP LDO family offers a wide range of output voltages and output current levels:
ADP3300 (50 mA, SOT-23)
ADP3301 (100 mA)
ADP3302 (100 mA, Dual Output)
**Applications**
Cellular telephones
Notebook, palmtop computers
Battery powered systems
Portable instruments
Post regulator for switching supplies
Bar code scanners
### Features and Benefits
High accuracy over line and load ±0.8% at +25°C, ±1.4% over temperature
Ultralow dropout voltage: 180 mV (typical) at 200 mA
Requires only CO = 0.47 μF for stability
anyCAP = stable with all types of capacitors (including MLCC)
3.2 V to 12 V supply range
Current and thermal limiting
Low noise
Dropout detector
Low shutdown current: < 1 μA
Thermally enhanced SOIC_N package
Excellent Line and Load Regulation Performance
