ADP7105ARDZ ,Voltage Regulator - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

132 points

Part No

ADP7105ARDZ
Manufacturer

ADI
ChipWorker Part#

CW1958534
Category

Voltage Regulator
Package

SOIC-8
Description

ANALOG DEVICES ADP7105ARDZ LDO Voltage Regulator, Adjustable, 3.3V to 20V in, 350mV drop, 1.22V to 19V/0.5A out, SOIC-8
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 8.52

Buy ADP7105ARDZ

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ADP7105ARDZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ADP7105ARDZ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ADP7105ARDZ
Manufacturer	ADI
ChipWorker Part#	CW1958534
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Number of Outputs	1 Output
Output Voltage	1.22V ~ 19V
Output Current	500 mA
Number of Positions	8 Position
Quiescent Current	900 µA
voltage rating	350 mV
Input Voltage (Max)	20 V
Input Voltage (Min)	3.3 V
Output Voltage (Max)	19 V
Output Voltage (Min)	1.22 V
Output Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.8 %
Input Voltage	3.3V ~ 20V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

Product Details
The ADP7105 is a CMOS, low dropout (LDO) linear regulator that operates from 3.3 V to 20 V and provides up to 500 mA of output current. This high input voltage LDO is ideal for regula-tion of high performance analog and mixed-signal circuits operating from 1.22 V to 19 V rails. Using an advanced proprietary architecture, the ADP7105 provides high power supply rejection and low noise, and achieves excellent line and load transient response with only a small 1 μF ceramic output capacitor.
The ADP7105 is available in three fixed output voltage options and an adjustable version that allows output voltages ranging from 1.22 V to 19 V via an external feedback divider. The ADP7105 allows an external soft start capacitor to be connected to program the startup.
Note that throughout this data sheet, the sense function (SENSE) of the SENSE/ADJ pin applies to fixed output voltage models only, whereas the adjust input function (ADJ) applies to adjustable output voltage models only. For example, Figure 1 shows the sense function, and Figure 2 shows the adjust input function.
The ADP7105 output noise voltage is 15 μV rms and is inde-pendent of the output voltage. A digital power-good output allows power system monitors to check the health of the output voltage. A user programmable precision undervoltage lockout function facilitates sequencing of multiple power supplies.

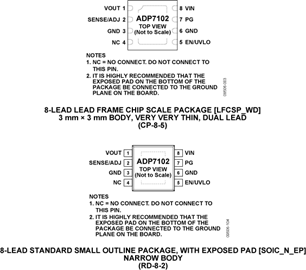

The ADP7105 is available in 8-lead, 3 mm × 3 mm LFCSP and 8-lead SOIC packages. The LFCSP offers a very compact solution and provides excellent thermal performance for applications that require up to 500 mA of output current in a small, low profile footprint.
**APPLICATIONS**
Regulation of noise sensitive applications:
ADC and DAC circuits, precision amplifiers,
high frequency oscillators, clocks, and PLLs
Communications and infrastructure
Medical and healthcare
Industrial and instrumentation
### Features and Benefits
Input voltage range: 3.3 V to 20 V
Maximum output current: 500 mA
Low noise: 15 μV rms for fixed output versions
PSRR performance of 60 dB at
10 kHz, VOUT = 3.3 V
Reverse current protection
Low dropout voltage: 350 mV at
500 mA
Initial accuracy: ±0.8%
Accuracy over line, load, and temperature: −2% to +1%
Low quiescent current: 900 μA at
VIN = 10 V, IOUT = 500 mA
Low shutdown current: <50 μA at
VIN = 12 V, stable with small 1 μF ceramic output capacitor
3 fixed output voltage options:
1.8, 3.3 V and 5 V
See datasheet for additional features
