ADR292GRZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADR292GRZ
Manufacturer

ADI
ChipWorker Part#

CW488191
Category

Voltage Reference
RoHS

Lead free / RoHS Compliant
Description

V-Ref Precision 4.096V 5mA 8Pin SOIC N Tube
Documentation

Datasheet

ADR292GRZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADR292GRZ Specifications

Attribute	Attribute Value

Part Number	ADR292GRZ
Manufacturer	ADI
ChipWorker Part#	CW488191
Category	Voltage Reference
Documentation	Datasheet
Mounting Style	Surface Mount

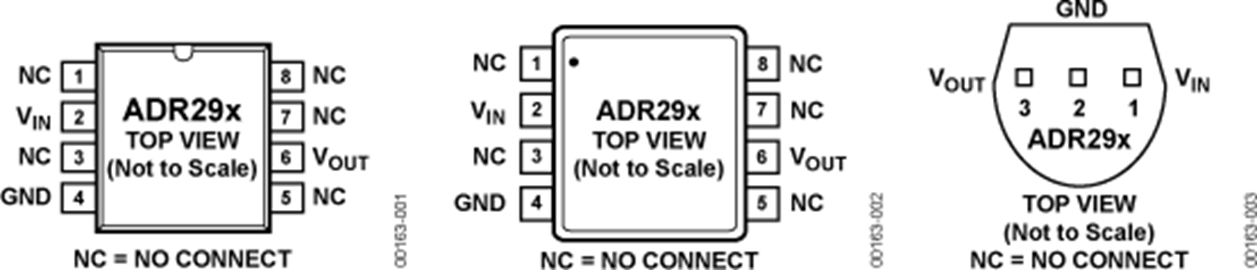

Number of Pins	8 Pin
Case/Package	SOIC-8
Capacitance Tolerance	±0.15 %
Number of Outputs	1 Output
Input Voltage (DC)	4.40V ~ 15.0V
Output Voltage	4.096 V
Output Current	5 mA
Supply Current	18 µA
Number of Channels	1 Channel
Number of Positions	8 Position
Input Voltage (Max)	18 V
Output Voltage (Max)	4.102 V
Output Voltage (Min)	4.096 V
Output Current (Max)	5 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	4.096 V
Input Voltage	5V ~ 15V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Temperature Coefficient	±10 ppm/℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99

Product Description

GENERAL DESCRIPTION
The ADR291 and ADR292 are low noise, micropower precision voltage references that use an XFET® reference circuit. The new XFET architecture offers significant performance improvements over traditional band gap and buried Zener-based references. Improvements include one quarter the voltage noise output of band gap references operating at the same current, very low and ultralinear temperature drift, low thermal hysteresis, and excellent long-term stability.
The ADR291/ADR292 family is a series of voltage references providing stable and accurate output voltages from supplies as low as 2.8 V for the ADR291. Output voltage options are 2.5 V and 4.096 V for the ADR291 and ADR292, respectively.
FEATURES
Supply range
2.8 V to 15 V, ADR291
4.4 V to 15 V, ADR292
Supply current: 15 μA maximum
Low noise: 8 μV and 12 μV p-p (0.1 Hz to 10 Hz)
High output current: 5 mA
Temperature range: −40°C to +125°C
Pin-compatible with REF02/REF19x
APPLICATIONS
Portable instrumentation
Precision reference for 3 V and 5 V systems
Analog-to-digital and digital-to-analog converter reference
Solar-powered applications
Loop-current-powered instruments
