2N5190 - ON Semiconductor

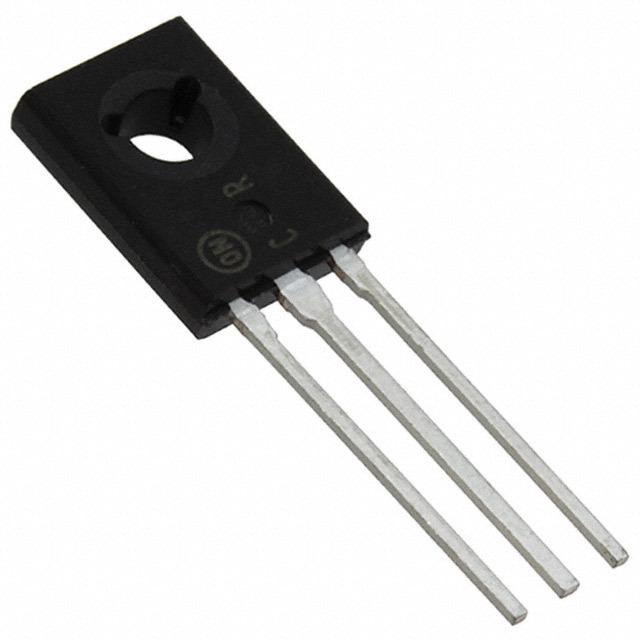

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2N5190
Manufacturer

ON Semiconductor
ChipWorker Part#

CW172328372
Category

BJT Transistor, BJT
Description

TO-225-3 NPN 40V 4A
Documentation

Datasheet

2N5190 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2N5190 Specifications

Attribute	Attribute Value

Part Number	2N5190
Manufacturer	ON Semiconductor
ChipWorker Part#	CW172328372
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	TO-126-3
Voltage Rating (DC)	40.0 V
Current Rating	4.00 A
Polarity	N-Channel
Breakdown Voltage (Collector to Emitter)	40 V
Continuous Collector Current	4A
hFE Min	25 @1.5A, 2V
hFE Max	100
Input Power (Max)	40 W
	expand all
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
Minimum Packing Quantity	500
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

The Power 4 A, 80 V Bipolar NPN Transistors is for use in power amplifier and switching circuits. This transistor has excellent safe area limits and is a complement to PNP 2N5194, 2N5195
Features
---
|
Pb-Free Packages are Available
