ADUM210N0BRIZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADUM210N0BRIZ
Manufacturer

ADI
ChipWorker Part#

CW669370
Category

Interface Isolator, Digital Isolator
Package

SOIC-8
Description

ANALOG DEVICES ADUM210N0BRIZ Digital Isolator, 5kV, 1Channel, 7.2ns, 1.7V, 5.5V, SOIC, 8Pins
Documentation

Datasheet

ADUM210N0BRIZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADUM210N0BRIZ Specifications

Attribute	Attribute Value

Part Number	ADUM210N0BRIZ
Manufacturer	ADI
ChipWorker Part#	CW669370
Category	Interface Isolator, Digital Isolator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	1.70V (min)
Rise/Fall Time	2.5 ns
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	980 mW
Isolation Voltage	5000 Vrms
Fall Time (Max)	2.5 ns
Fall Time (Max)	2.5 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	980 mW
Supply Voltage	1.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.7 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

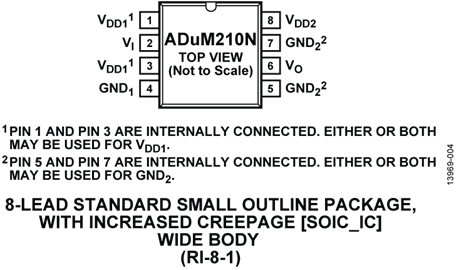

Product Description

Product Details
The ADuM210N is single-channel digital isolators based on Analog Devices, Inc., iCoupler® technology. Combining high speed, complementary metal-oxide semiconductor (CMOS) and monolithic air core transformer technology, this isolation component provides outstanding performance characteristics, superior to alternatives such as optocoupler devices and other integrated couplers. The maximum propagation delay is 13 ns with a pulse width distortion of less than 3 ns at 5 V operation.
The ADuM210N supports data rates as high as 150 Mbps with a withstand voltage rating of 5.0 kV rms. The device operates with the supply voltage on either side ranging from 1.8 V to 5 V, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier.
Unlike other optocoupler alternatives, dc correctness is ensured in the absence of input logic transitions. Two different fail-safe options are available, in which the outputs transition to a pre-determined state when the input power supply is not applied or the inputs are disabled.
**Applications
**
General-purpose single-channel isolation
Industrial field bus isolation
### Features and Benefits
High common-mode transient immunity: 100 kV/&micros
High robustness to radiated and conducted noise
Low propagation delay
13 ns maximum for 5 V operation
15 ns maximum for 1.8 V operation
150 Mbps maximum data rate
Low dynamic power consumption
1.8 V to 5 V level translation
High temperature operation: 125°C
Fail-safe high or low options
8-lead, RoHS-compliant, SOIC_IC package
See data sheet for additional features
