ADV7184 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

18 points

Part No

ADV7184
Manufacturer

ADI
ChipWorker Part#

CW389453206
Description

Multiformat SDTV Video Decoder with Fast Switch Overlay Support
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy ADV7184

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ADV7184 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ADV7184 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ADV7184
Manufacturer	ADI
ChipWorker Part#	CW389453206
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Similar & Replacement Parts

Similar products

Product Description

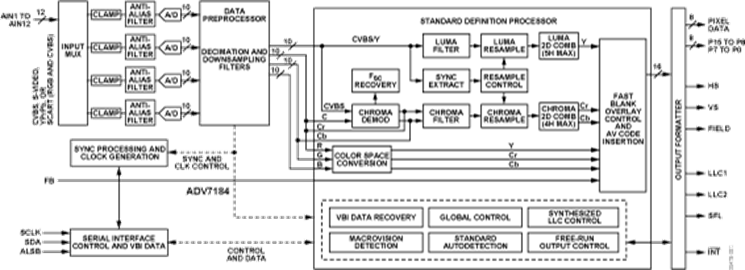

GENERAL DESCRIPTION
The ADV7184 integrated video decoder automatically detects and converts a standard analog baseband television signal, which is compatible with worldwide standards NTSC, PAL, and SECAM, into 4:2:2 component video data-compatible with 16-bit or 8-bit CCIR601/CCIR656.
FEATURES
Multiformat video decoder supports NTSC-(J, M, 4.43), PAL-(B/D/G/H/I/M/N), SECAM
Integrates four 54 MHz, 10-bit ADCs
SCART fast blank support
Clocked from a single 28.63636 MHz crystal
Line-locked clock-compatible (LLC)
Adaptive digital line length tracking (ADLLT™), signal
processing, and enhanced FIFO management give mini
TBC functionality
5-line adaptive comb filters
Proprietary architecture for locking to weak, noisy, and unstable video sources such as VCRs and tuners
Subcarrier frequency lock and status information output
Integrated AGC with adaptive peak white mode
Macrovision® copy protection detection
CTI (chroma transient improvement)
DNR (digital noise reduction)
Multiple programmable analog input formats
CVBS (composite video)
S-Video (Y/C)
YPrPb component (VESA, MII, SMPTE, and Betacam)
12 analog video input channels
Integrated antialiasing filters
Automatic NTSC/PAL/SECAM identification
Programmable interrupt request output pin
