AMG8833 ,Temperature Sensor - Panasonic

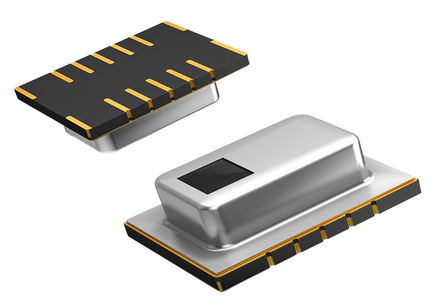

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

137 points

Part No

AMG8833
Manufacturer

Panasonic
ChipWorker Part#

CW3202003
Category

Temperature Sensor
Package

SMD-14
Description

Temperature Sensor IC, Grid EYE Infrared Array, Digital, ± 2.5℃, 0 °C, 80℃, Module, 14Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

70 pcs In Stock
Estimated Price

$ 37.7

Buy AMG8833

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AMG8833 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AMG8833 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AMG8833
Manufacturer	Panasonic
ChipWorker Part#	CW3202003
Category	Temperature Sensor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SMD-14
Supply Voltage (DC)	3.00V (min)
Number of Positions	14 Position
Output Current (Max)	10 mA
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±2.5 ℃
Supply Voltage	3.3 V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	expand all
Size-Length	11.6 mm
Size-Width	8 mm
Size-Height	4.3 mm
Operating Temperature	0℃ ~ 80℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status

Similar & Replacement Parts

Similar products

Product Description

The AMG8833 is a Grid-Eye infrared array sensor in 14 pin SMD module. This high precision infrared array sensor based on advanced MEMS technology. It detects the heat (infrared rays) of the human body and other objects. Typical applications include high function home appliances such as microwaves and air-conditioners, energy saving at office such as air-conditioning/lighting control, digital signage and automatic doors/elevators.
Temperature detection of two-dimensional area is 8 x 8 (64 pixels)
Operating voltage is 3.3VDC
High performance type high gain amplification
Temperature accuracy is ±2.5°C or ±4.5°F (typical )
Human detection distance is 7m or less (reference value) 22.966ft
Noise equivalent temperature difference is 0.05°C or 32.900°F at 1Hz
Viewing angle is 60° and optical axis gap is within ±5.6°(typical)
Current consumption is 4.5mA (normal mode), 0.2mA (sleep mode), 0.8mA (stand-by mode)
I2C interface and frame rate is typically 10frames/sec or 1frame/sec
Time to enable communication after setup is 50ms & time to stabilize output after setup is 15ms
