NAC3FCA - Neutrik

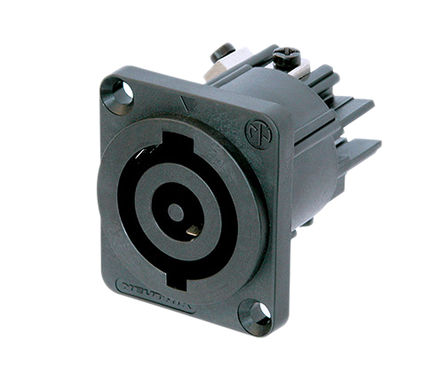

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoNAC3FCA
-
ManufacturerNeutrik
-
ChipWorker Part#CW8517729
-
CategoryConnector
-
Package-
-
DescriptionFemale Blue 3P Power Connector Mains 20A Socket Cable Mount, 250V, Nylon
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
NAC3FCA Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
NAC3FCA Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | NAC3FCA |
| Manufacturer | Neutrik |
| ChipWorker Part# | CW8517729 |
| Category | Connector |
| Documentation | Datasheet |
| Mounting Style | Screw |
| Number of Pins | 3 Pin |
| Case/Package | - |
| Number of Contacts | 3 Contact |
| Gender | Female |
| Contact Plating | Silver |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Current Rating | 20 A |
| Insulation Resistance | 100 MΩ |
| Orientation | Straight |
| Flammability Rating | UL 94 HB |
| Contact Resistance | 3 mΩ |
| Current Rating (Max) | 20A/触头 |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating (Max) | 250 V |
| Voltage Rating | 250 VAC |
| Maximum Contact Resistance (Max) | 3 mΩ |
| expand all | |
| Size-Length | 73 mm |
| Size-Width | 26 mm |
| Size-Diameter | 25.8 mm |
| Color | Blue |
| Contact Material | Bronze |
| Operating Temperature | -30℃ ~ 80℃ |
| Housing Material | Nylon |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| HTS Code | 8536694020 |
| ECCN Code | EAR99 |
Product Description
- The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
- Power-in (blue) version with different keying to avoid the possibility of intermating
- Fast and easy twist lock latching system
- Extremely robust and reliable
- Ergonomic design
- Unique Neutrik chuck type strain relief
- Improved kink protection by two-component bushing
- New bushing design avoids unintended opening
- UL, cUL recognized components, VDE certified, SEV approved
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
- Wire size of 14AWG (2.5mm²) and cable outer dimension is 6mm to 15mm
- The powerCON is a connector without breaking capacity, that is the powerCON should not be connected or disconnected under load or live.
