AO8804 - Alpha & Omega Semiconductor

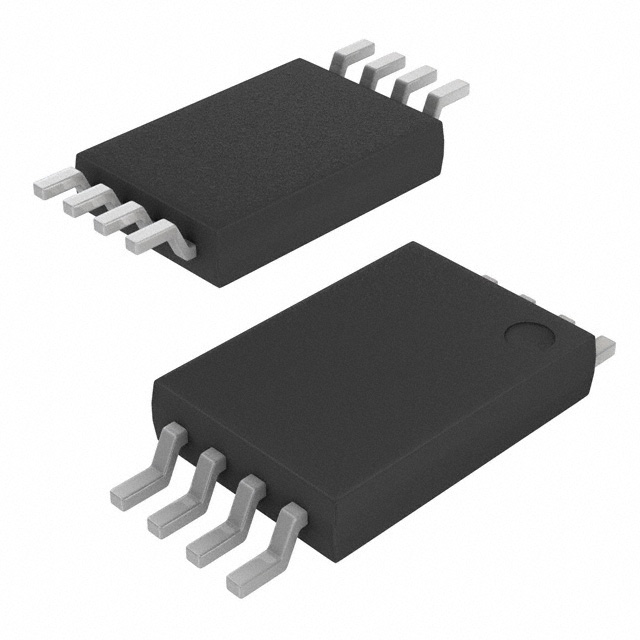

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AO8804
Manufacturer

Alpha & Omega Semiconductor
ChipWorker Part#

CW26529596
Category

MOSFET, MOSFET Transistor
Package

TSSOP-8
Description

TSSOP N-CH 20V 8A
Documentation

Datasheet

AO8804 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AO8804 Specifications

Attribute	Attribute Value

Part Number	AO8804
Manufacturer	Alpha & Omega Semiconductor
ChipWorker Part#	CW26529596
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Power Rating	1.08 W
Polarity	N-CH
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	8A
Rise Time	7.2 ns
Input Capacitance (Ciss)	1810pF @10V(Vds)
Input Power (Max)	1.5 W
Fall Time	10.8 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.5 W
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Mosfet Array 2 N-Channel (Dual) Common Drain 20V 1.5W Surface Mount 8-TSSOP
