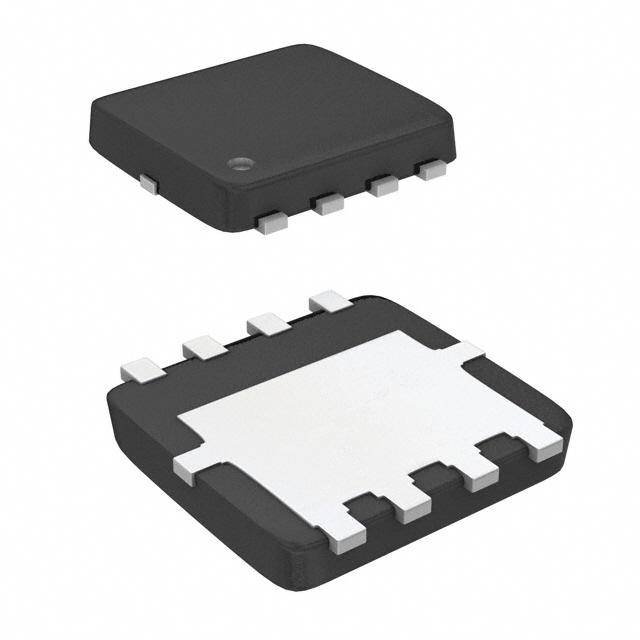

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AON7430
Manufacturer

Alpha & Omega Semiconductor
ChipWorker Part#

CW31566754
Category

MOSFET, MOSFET Transistor
Package

DFN-8
Description

DFN N-CH 30V 34A
Documentation

Datasheet

AON7430 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AON7430 Specifications

Attribute	Attribute Value

Part Number	AON7430
Manufacturer	Alpha & Omega Semiconductor
ChipWorker Part#	CW31566754
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DFN-8
Power Rating	9 W
Polarity	N-CH
Power Dissipation	23 W
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	34A
Rise Time	9 ns
Input Capacitance (Ciss)	910pF @15V(Vds)
Input Power (Max)	3.1 W
Fall Time	6 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3.1W (Ta), 23W (Tc)
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

General Description
The AON7430 uses advanced trench technology to provide excellent RDS(ON) with low gate charge. This device is suitable for high side switch in SMPS and general purpose applications.
Features
VDS (V) = 30V
ID = 34A (VGS = 10V)
RDS(ON) < 12mΩ (VGS = 10V)
RDS(ON) < 16mΩ (VGS = 4.5V)
100% UIS Tested
100% Rg Tested
