ATS01N212QN - Schneider Electric

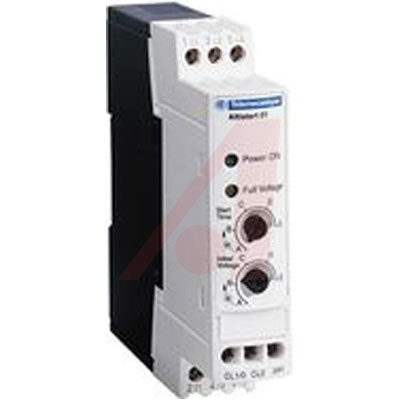

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ATS01N212QN
Manufacturer

Schneider Electric
ChipWorker Part#

CW62469319
Description

Soft Starter 12A 380VAC 415VAC 5.5kW 50Hz/60Hz DIN Rail/Screw Mount
Documentation

Datasheet

ATS01N212QN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ATS01N212QN Specifications

Attribute	Attribute Value

Part Number	ATS01N212QN
Manufacturer	Schneider Electric
ChipWorker Part#	CW62469319
Documentation	Datasheet
Current Rating	12 A
Power Rating	5.5 kW
Operating Temperature (Max)	40 ℃
Operating Temperature (Min)	-10 ℃
Voltage Rating	415 V
Supply Voltage	380V ~ 415V
Supply Voltage (Max)	415 V
Supply Voltage (Min)	380 V
	expand all
Size-Length	130.7 mm
Size-Width	45 mm
Operating Temperature	-10℃ ~ 40℃
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The ATS01N212QN from Schneider Electric is a three phase, soft starter asynchronous motor. Supply voltage of this motor ranges from 380V to 415V and has standard dimension of 124mm height, 45mm width and 131mm depth.
LED display available in green and yellow colour
Start with voltage ramp
Featured with heat sink assembly
Power dissipation of 124W in transient state
Power supply frequency range from 50Hz to 60Hz
Product weight is 0.42Kg
Vertical operating position
CCC, CSA, C-Tick, GOST and UL certified
IP20 degree of protection
Ambient air temperature for operation range from 40°C to 50°C with current derating 2.2% /°C
