B3S1002 - Omron

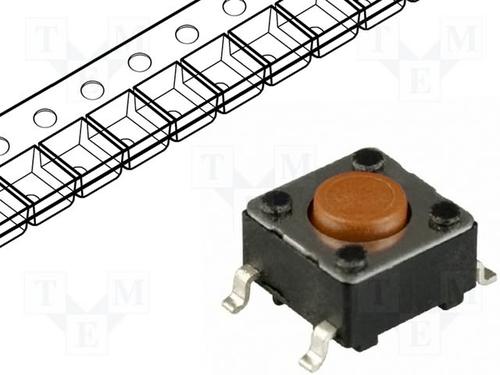

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

B3S1002
Manufacturer

Omron
ChipWorker Part#

CW36635703
Category

Tactile Switch, Jog Switch
Description

Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 500000Cycle 2.26N SMD Bag
Documentation

Datasheet

B3S1002 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

B3S1002 Specifications

Attribute	Attribute Value

Part Number	B3S1002
Manufacturer	Omron
ChipWorker Part#	CW36635703
Category	Tactile Switch, Jog Switch
Documentation	Datasheet
Mounting Style	Surface Mount
Contact Plating	Silver
Voltage Rating (DC)	24 V
Actuator Type	Standard
Current Rating	50.0 mA
Insulation Resistance	100 MΩ
Number of Rows	2 Row
Orientation	Vertical
Contacts Type	SPST-NO
Contact Resistance	100 mΩ
Contact Current Rating	50.0 mA
Current Rating (Max)	0.05A @24VDC
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating (DC Max)	24 V
Maximum Contact Resistance (Max)	100 mΩ
	expand all
Size-Length	6.6 mm
Size-Width	6.00 mm
Size-Height	4.3 mm
Contact Material	Phosphor Bronze
Operating Temperature	-25℃ ~ 70℃
Packaging	Bag
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

With just a change in pressure this B3S1002 tactile switch from Omron can turn your circuit on or off. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This tactile switch has a minimum operating temperature of -25 °C and a maximum of 70 °C. The B3S1002 tactile switch has a gull wing termination style. This product is 6.6 mm long, 4.3 mm tall and 9 mm deep. This yellow round button actuator is 0.55 mm long. The maximum DC voltage rating is 24 VDC.
