B82111EC22 - Epcos

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

B82111EC22
Manufacturer

Epcos
ChipWorker Part#

CW91977892
Category

Inductor
RoHS

Lead free / RoHS Compliant
Description

VHF Choke Wirewound 22uH 20% 100kHz Ferrite 3A 70mOhm DCR AXL T/R
Documentation

Datasheet

B82111EC22 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

B82111EC22 Specifications

Attribute	Attribute Value

Part Number	B82111EC22
Manufacturer	Epcos
ChipWorker Part#	CW91977892
Category	Inductor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Axial
Voltage Rating (DC)	500 V
Voltage Rating (AC)	500 V
Current Rating	3 A
Capacitance Tolerance	±20 %
Inductance	22 µH
Self Resonant Frequency	110 MHz
Resistance	70.0 mΩ
Resonant Frequency	110 MHz
Inductance Tolerance	±20 %
Test Frequency	100 KHz
DC Resistance (DCR)	70 mΩ
Current Rating (DC)	3 A
Resistance (DC Max)	0.07 Ω
	expand all
Operating Temperature	-55℃ ~ 125℃
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

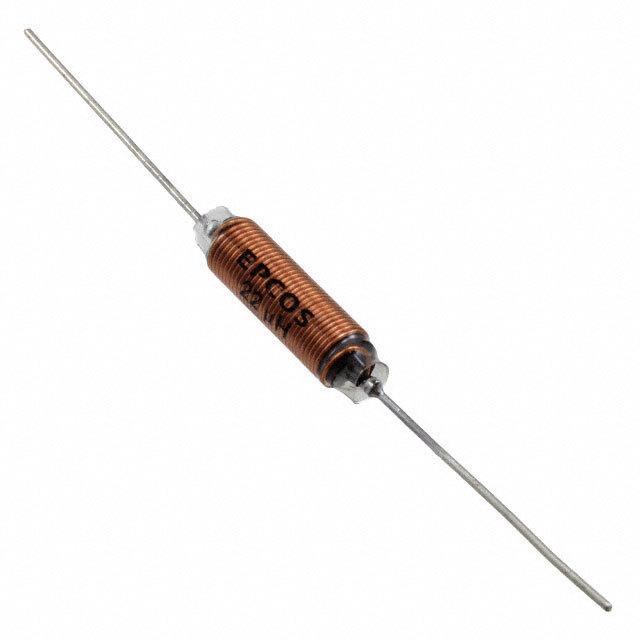

The B82111EC22 is an axial leaded High Frequency Inductor with ferrite cylinder core. This VHF choke is constructed as single-layer, enamel copper wire windings and polyester insulating sleeve. This inductor"s terminals are made of central axial leads, copper base and hot-dip tinned with pure tin terminations. Supports ±20% of inductance tolerance and is suitable for wave soldering.
High resonant frequency
Wide inductance range
Complies with EN60938 standard
