BA09FP - ROHM Semiconductor

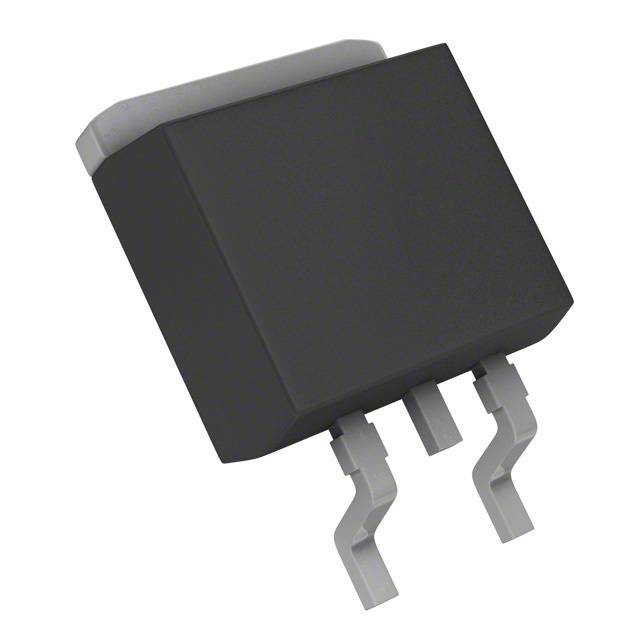

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BA09FP
Manufacturer

ROHM Semiconductor
ChipWorker Part#

CW398293766
Category

Voltage Regulator
Package

TO-252
Description

LDO Regulator Pos 9V 1A 3Pin(2+Tab) CPT
Documentation

Datasheet

BA09FP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BA09FP Specifications

Attribute	Attribute Value

Part Number	BA09FP
Manufacturer	ROHM Semiconductor
ChipWorker Part#	CW398293766
Category	Voltage Regulator
Documentation	Datasheet
Number of Pins	3 Pin
Case/Package	TO-252
	expand all
Product Lifecycle Status	Obsolete
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The BAΟΟT/ FP series are fixed positive output low drop-out type, 3-pin voltage regulators with positive output.. These regulators are used to provide a stabilized output voltage from a fluctuating DC input voltage. There are 10 fixed output voltages, as follows:3V, 3.3V, 5V, 6V, 7V, 8V, 9V, 10V, 12V and 15V. The maximum current capacity is 1A for each of the above voltages. (Items marked with an asterisk are under development.)
Features
1) Built-in overvoltage protection circuit, overcurrent protection circuit and thermal shutdown circuit.
2) TO220FP and TO252-3 packages are available to cover a wide range of applications.
3) Compatible with the BA178ΟΟ series.
4) Richly diverse lineup.
5) Low minimum I / O voltage differential.
Applications
Constant voltage power supply
