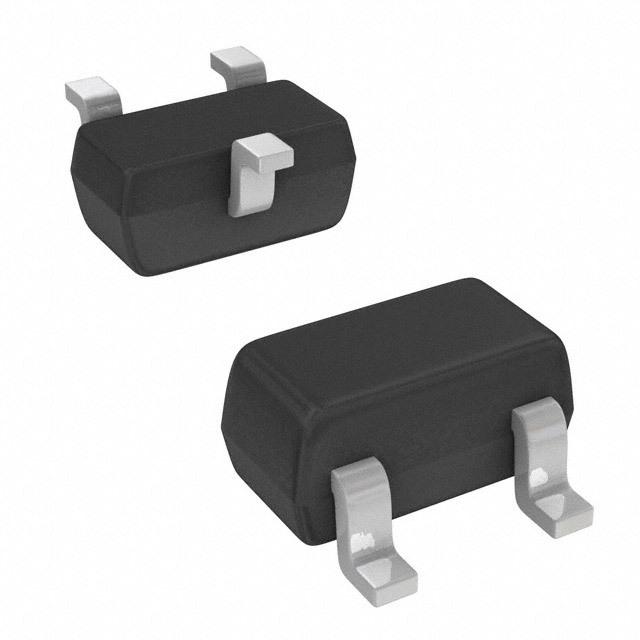

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

301 points

Part No

BAT54LT1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW406033
Category

Schottky Diode
Package

SOT-23-3
Description

Diode: Schottky rectifying; SMD; 30V; 0.2A; 5ns; 200mW; SOT23
Documentation

Datasheet
Ships from

Moscow
Наличие

155457 pcs In Stock
Estimated Price

$ 0.01

Buy BAT54LT1G

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

BAT54LT1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

BAT54LT1G Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	BAT54LT1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW406033
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	30.0 V
Current Rating	200 mA
Capacitance	10.0 pF
Halogen Free Status	Halogen Free
Output Current	200 mA
Number of Positions	3 Position
Forward Voltage	0.8 V
Polarity	Standard
Power Dissipation	200 mW
Reverse recovery time	5 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	600 mA
Maximum Forward Voltage (Max)	800 mV
Forward Current (Max)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	125 ℃
Power Dissipation (Max)	200 mW
	expand all
Size-Length	2.9 mm
Size-Width	1.3 mm
Size-Height	0.94 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The BAT54LT1G is a Schottky Barrier Diode designed for high speed switching applications, circuit protection and voltage clamping. It features extremely low forward voltage reduces conduction loss. This miniature surface mount package is excellent for hand held and portable applications, where space is limited.
