BC32740TA - Fairchild

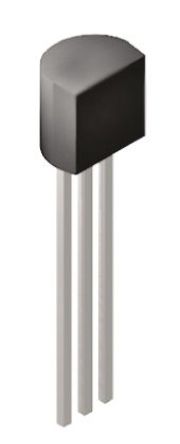

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BC32740TA
Manufacturer

Fairchild
ChipWorker Part#

CW14273463
Category

BJT Transistor, BJT
Package

TO-226-3
Description

Trans GP BJT PNP 45V 0.8A 3Pin TO-92 Ammo
Documentation

Datasheet

BC32740TA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BC32740TA Specifications

Attribute	Attribute Value

Part Number	BC32740TA
Manufacturer	Fairchild
ChipWorker Part#	CW14273463
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Frequency	100 MHz
Voltage Rating (DC)	-45.0 V
Current Rating	-800 mA
Number of Positions	3 Position
Polarity	PNP
Power Dissipation	625 mW
Breakdown Voltage (Collector to Emitter)	45 V
Continuous Collector Current	0.8A
hFE Min	250 @100mA, 1V
Input Power (Max)	625 mW
DC Current Gain (hFE)	170
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	0.625 W
	expand all
Size-Length	5.2 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The BC32740TA is a PNP Epitaxial Silicon Transistor suitable for AF-driver stages, low-power output stages, switching and amplifier applications.
Complement to BC337
