BC549B - Diotec Semiconductor

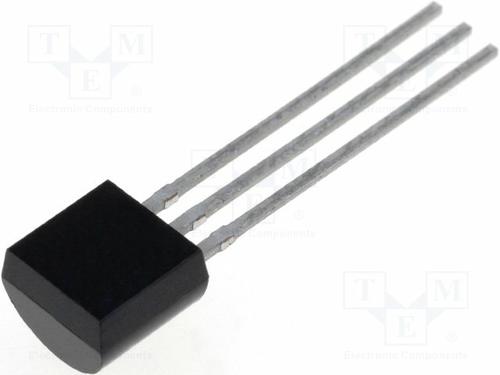

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BC549B
Manufacturer

Diotec Semiconductor
ChipWorker Part#

CW19877373
Category

BJT Transistor, BJT
Package

TO-92
Description

Transistor: NPN; bipolar; 30V; 100mA; 0.5W(1/2W); TO92
Documentation

Datasheet

BC549B Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BC549B Specifications

Attribute	Attribute Value

Part Number	BC549B
Manufacturer	Diotec Semiconductor
ChipWorker Part#	CW19877373
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92
Frequency	300 MHz
Power Rating	500 mW
Power Dissipation	500 mW
Gain Bandwidth Product	300 MHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	expand all
Material	Silicon
Product Lifecycle Status	Active
Packaging	Ammo Pack
RoHS	RoHS Compliant

Product Description

Power dissipation 500 mW
Plastic case TO-92
Weight approx. 0.18 g
Plastic material has UL classification 94V-0
Standard packaging taped in ammo pack

expand all
